51 16 040 Removing and installing/replacing housing on left or right outside mirror

WARNING: This page is about a different car, the 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MIRROR GLASS

NOTE: Housing (2) is secured without play by four multitooth catches (1) on retaining ring (3).
Secure housing on exterior mirror (2) against falling out.

Unlock multitooth catches (1) with a screwdriver.

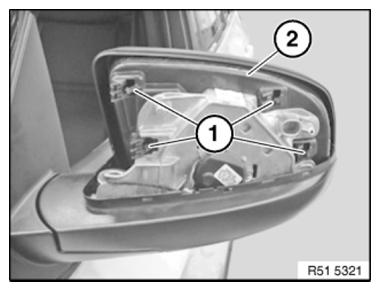

Fig 1: Identifying Exterior Mirror Housing, Multitooth Catches And Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip housing (2) forwards from retaining ring (3) and remove.

Installation:

Multitooth catches (1) and guide (2) on housing (3) must not be damaged.

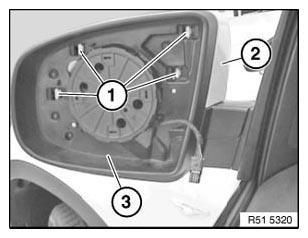

Fig 2: Identifying Outside Mirror Housing, Guide And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locators (1) on retaining plate (2) must not be damaged.

Fig 3: Identifying Retaining Plate And Locators

Courtesy of BMW OF NORTH AMERICA, INC.
