51 47 065 Removing and installing/replacing cover at front left or right entrance

WARNING: This page is about a different car, the 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

The NOTES on component bonding with double-sided adhesive tape serve as the basis for these repair instructions and must be observed without fail.

Cover can not be reused.

Sever the double-sided adhesive tape of cover (1) with CUTTING CORD (2) and pulling handles (3).

Detach cover (1) and dispose of it.

Fig 1: Identifying Cover, Cord And Handles

Courtesy of BMW OF NORTH AMERICA, INC.

Clean bonding surface.

Bond on new cover (1) in accordance with dimension (x and y).

x = 4 to 4.5 mm parallel to entrance edge
y = 30 mm protrusion to joint of cover (2)

NOTE: If the cover (1) is only replaced on one side, the dimensions (x and y) from the other side must be used.

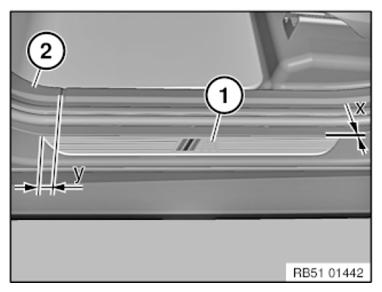

Fig 2: Identifying Cover Dimensions And Joint Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.
