Section 3483 (Propeller Shaft - Repair (ACTIVEHYBRID))
>>
Propeller Shaft Assembly
>>
26 11... Overview (inserted propeller shaft)
26 11... Overview (inserted propeller shaft)
WARNING:
This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

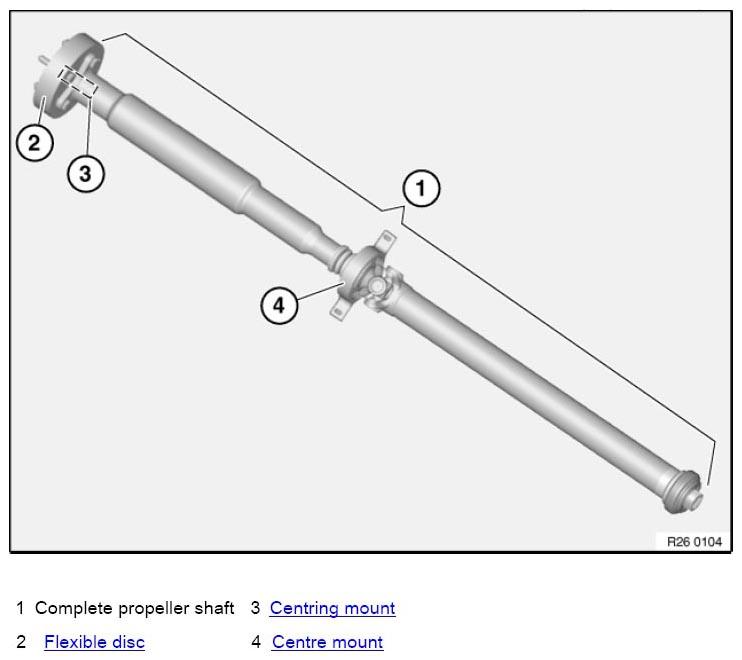

Fig 1: Overview Of Inserted Propeller Shaft
Courtesy of BMW OF NORTH AMERICA, INC.
