31 12 138 Replacing rubber mounts on both trailing links

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 3 032
33 3 322

NOTE: Procedure (except for M models) is described in removing and installing/replacing RUBBER MOUNT IN TRAILING LINK ON THE LEFT OR RIGHT .

IMPORTANT: On M models the rubber mounts on both trailing links must always be renewed. Note that the rubber mounts may only be changed once.

Necessary preliminary tasks:

Check wheel control joints of tension struts while installed, replace TENSION STRUTS if necessary
Remove TRAILING LINKS

Using a press and special tools 33 3 322 and 31 3 032, press rubber mount out of tension strut.

NOTE: Special tool 33 3 322 must be exactly flush with rubber mount bush.

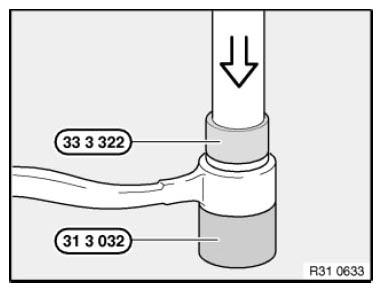

Fig 1: Pressing Rubber Mount Out Of Tension Strut Using Special Tools (33 3 322) And (31 3 032)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Keep rubber mount and bush in tension strut clean and free from grease.

Align rubber mounts to each other using markings and press in. The deviation (A) must not exceed ± 5°.

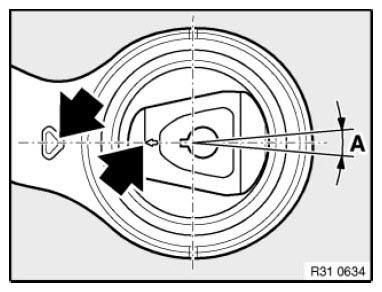

Fig 2: Aligning Rubber Mounts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Protrusion (A) equally large.

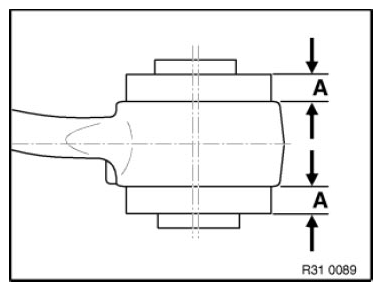

Fig 3: Identifying Stud Protrusion Position
