31 35 005 Removing and installing/replacing push rod (stabilizer link) for left/right stabilizer

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle
Do not mix up anti-roll bar links

Stabilizer link for conventional stabilizer
Stabilizer link for active stabilizer

Fig 1: Identifying Stabilizer Link For Active Stabilizer And Conventional Stabilizer
Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Installation:

Replace self-locking nut.

Tightening torque 31 35 2AZ .

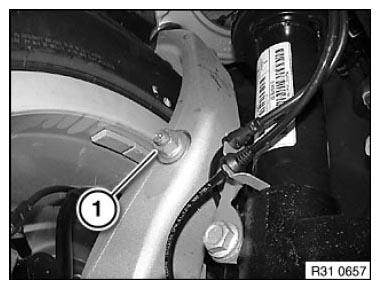

Fig 2: Identifying Self-Locking Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Remove stabilizer link (2).

Installation:

Replace self-locking nut.

Tightening torque 31 35 2AZ .

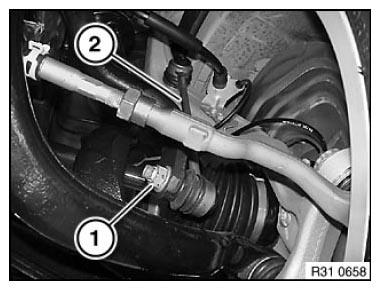

Fig 3: Identifying Stabilizer Link And Nut

Courtesy of BMW OF NORTH AMERICA, INC.
