31 31 000 Removing and installing complete left or right spring strut shock absorber

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Installation note:

All screws, nuts, bolts and hose clamps removed during the repair must be replaced.
Retaining elements on chassis and suspension and steering parts must be replaced.

Necessary preliminary tasks:

Remove PARTITION WALL OF UNITS COMPARTMENT SIDEWARDS
Remove SPRING STRUT HOLDER

IMPORTANT: Risk of damage!
Secure spring strut against falling out.

Unscrew nuts (1).

Installation note:

Clean contact surface in spring strut dome.

Replace self-locking nuts.

Tightening torque 31 31 1AZ .

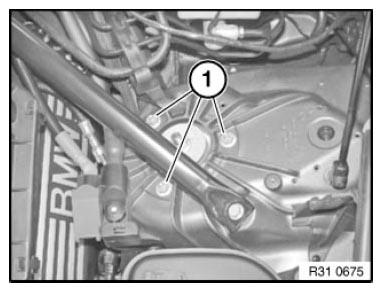

Fig 1: Identifying Self-Locking Nuts

G08577414

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Vertical Dynamics

Management: Disconnect both plug connections (1).

Disconnect plug connection (2) on pulse sensor.

Disconnect plug connection (3) from brake lining sensor.

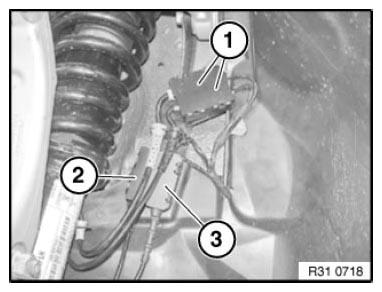

Fig 2: Identifying Plug Connection

G08577415

Courtesy of BMW OF NORTH AMERICA, INC.

Remove spring strut downwards out of wheel arch.

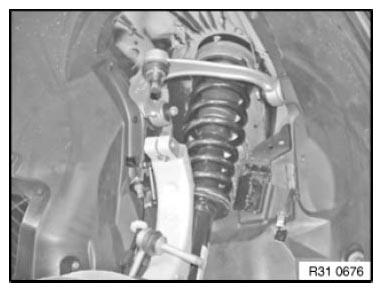

Fig 3: Identifying Spring Strut Of Wheel Arch
