31 50 001 Removing and installing/replacing front axle differential

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

REMOVE left output shaft.
Secure right output shaft with special tool.
Remove front propeller shaft.
Lower FRONT AXLE SUPPORT .

IMPORTANT: Danger of injury!
When releasing the last bolt, grip the front axle differential to prevent it from falling down.

Detach vent line (1).

Release bolts (2-4).

Remove front axle differential downwards.

Installation note:

During removal and installation: Replace O-RING .

Coat O-ring with front axle differential oil.

Make sure screws are installed in correct positions.

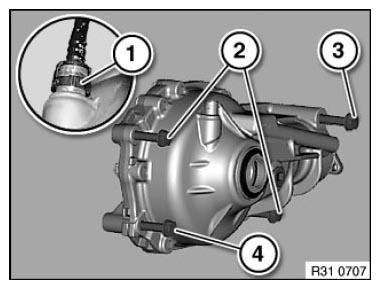

Fig 1: Identifying Vent Line, Bolts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Screw (2) top M12x85, bottom M12x55
Screw (3) M12x105
Screw (4) M12x55

Tightening torque 31 50 1AZ .

Check FRONT DIFFERENTIAL OIL LEVEL , correct if necessary

After installation:

Carry out STEERING ANGLE SENSOR ADJUSTMENT/ALIGNMENT FOR ACTIVE FRONT STEERING
Teach in SOFTWARE END STOP for electrical steering
