31 53 040 Removing and installing/replacing right output shaft bearing block
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
N62, N63:
Risk of short circuits!
There is a danger of short circuiting on account of the small distance between the bearing block screw connection and the starter motor.
Disconnect battery negative lead.
Risk of short circuits!
There is a danger of short circuiting on account of the small distance between the bearing block screw connection and the starter motor.
Disconnect battery negative lead.
Necessary preliminary tasks:
- Remove RIGHT OUTPUT SHAFT

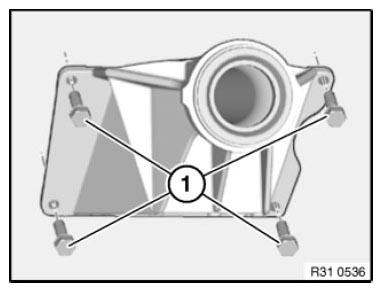

Release screws (1).
Remove bearing block from oil sump.
Installation:
Replace O-RING .
Tightening torque 31 60 1AZ .
Replacement:
- Remove sealing caps
