31 51 020 Replacing shaft seal for right output shaft

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 4 160

Necessary preliminary tasks:

REMOVE right output shaft.

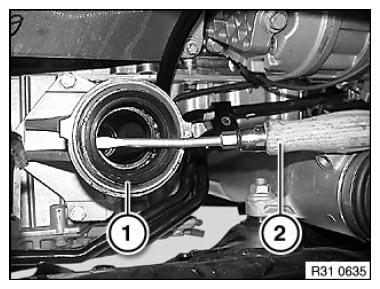

Lever shaft seal (1) out of bearing support with a screwdriver (2).

Fig 1: Removing Shaft Seal From Bearing Support With Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Install radial shaft seal

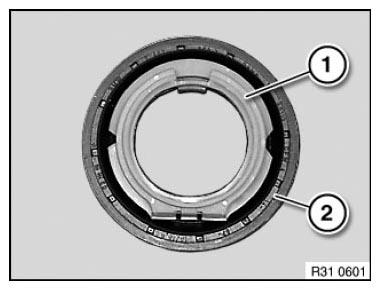

NOTE: The installation protective ring (1) serves to protect the sealing lips of the radial shaft seal (2) when the output shaft is being installed.

Fig 2: Identifying Radial Shaft Seal And Installation Protective Ring

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Installation protective ring must not slip out of shaft seal!

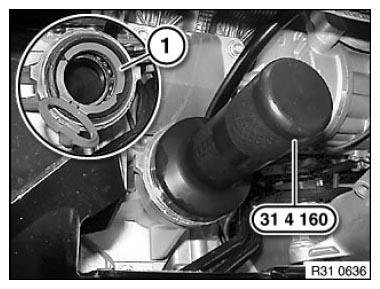

Drive in shaft seal with special tool 31 4 160 up to limit position.

Carefully remove special tool 31 4 160 .

Open installation protective ring (1).

Fig 3: Driving Shaft Seal With Special Tool (31 4 160)

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Check FRONT AXLE DIFFERENTIAL OIL LEVEL , correct if necessary
