36 10 209 Checking front and rear wheel for lateral and radial runout

Special tools required:

• 36 1 030

Necessary preliminary tasks:

• Check wheel bearings

Raise vehicle.

Check wheel with special tool 36 1 030 (measuring device) for lateral runout. See TWO-PART ALLOY WHEELS , ONE-PART ALLOY WHEELS , or STEEL AND ALUMINIUM STRIP WHEELS .

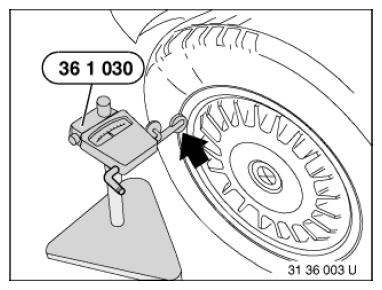

Fig 1: Checking Lateral Runout Of Wheel With Special Tool 36 1 030

Courtesy of BMW OF NORTH AMERICA, INC.

Check wheel with special tool 36 1 030 (measuring device) for radial runout. See TWO-PART ALLOY WHEELS , ONE-PART ALLOY WHEELS , or STEEL AND ALUMINIUM STRIP WHEELS .

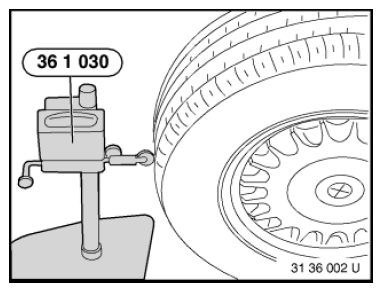

Fig 2: Checking Radial Runout Of Wheel With Special Tool 36 1 030

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove balance weights.

Check lateral runout of wheel rim with special tool 36 1 030 (measuring device). See TWO-PART ALLOY WHEELS , ONE-PART ALLOY WHEELS , or STEEL AND ALUMINIUM STRIP WHEELS .

Fig 3: Checking Lateral Runout Of Wheel Rim With Special Tool 36 1 030

Courtesy of BMW OF NORTH AMERICA, INC.

Check radial runout of wheel rim with special tool 36 1 030 (measuring device). See TWO-PART ALLOY WHEELS , ONE-PART ALLOY WHEELS , or STEEL AND ALUMINIUM STRIP WHEELS .

Fig 4: Checking Radial Runout Of Wheel Rim With Special Tool 36 1 030

Courtesy of BMW OF NORTH AMERICA, INC.
