13 54 250 Replacing inlet hose (between mass air flow sensor and throttle body) (M62)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Turn fasteners on acoustic cover 90° counterclockwise.

Remove acoustic cover.

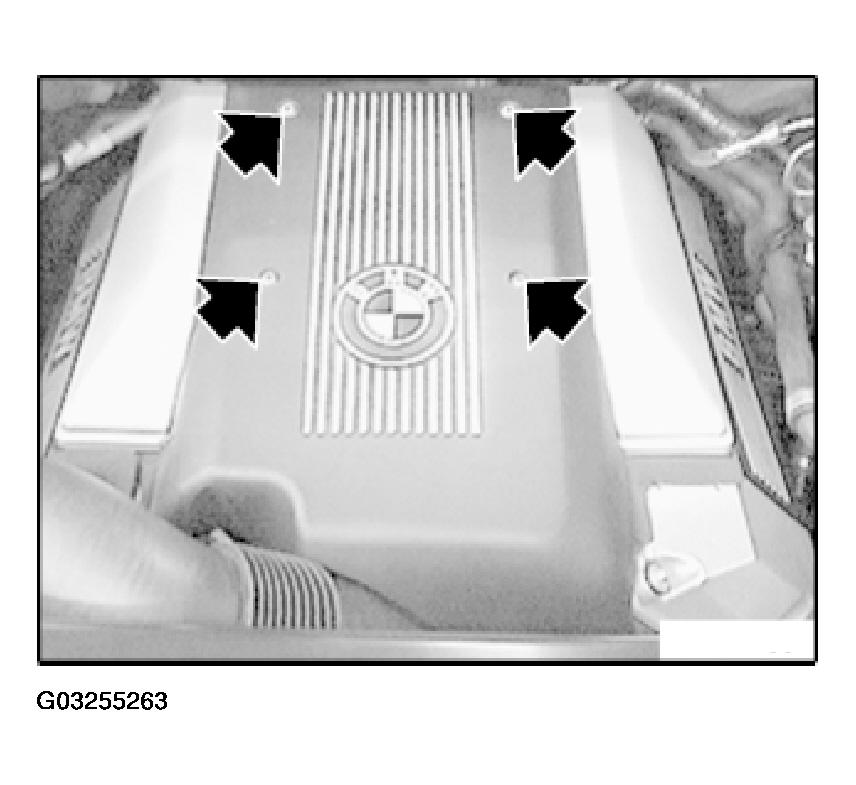

Fig 1: Removing Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release hose clamp (2).

Detach intake hose from air-mass flow sensor.

Installation:

Check sealing ring for damage and correct seating, replace if necessary.

Do not use any antiseize agent to install sealing ring/intake hose.

Release hose clamp (1).

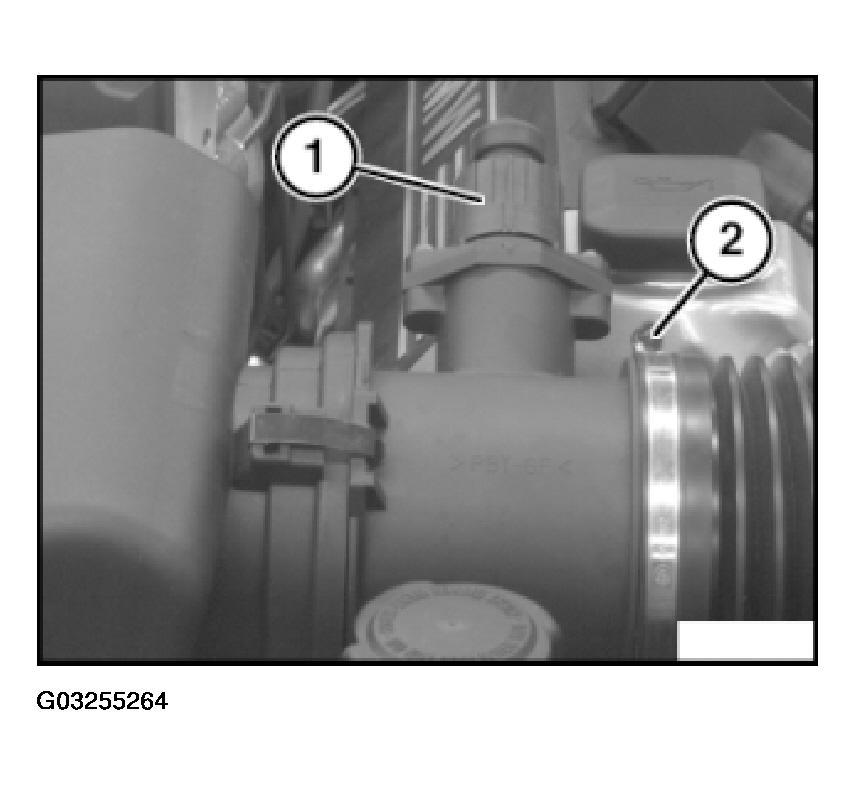

Fig 2: Detaching Intake Hose From Air-Mass Flow Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Detach vacuum hose (2) from intake hose.

Press lock (4) and detach vacuum line (3) from intake hose.

Installation:

Push vacuum line (3) onto intake hose until locking ring can clearly be heard snapping into place.

Detach intake hose from throttle assembly.

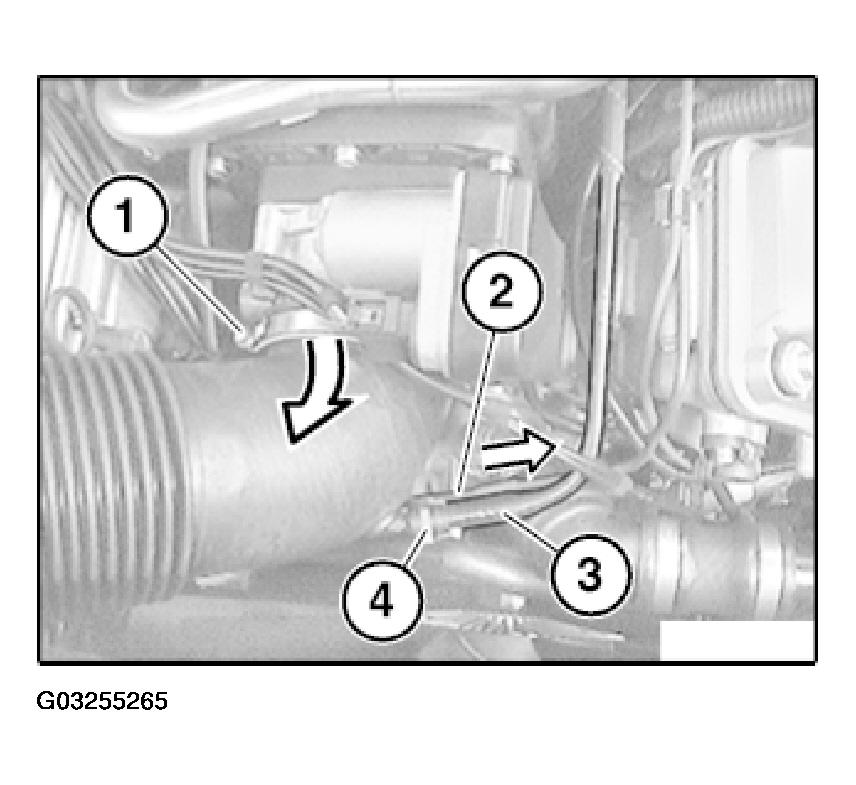

Fig 3: Detaching Vacuum Hose From Intake Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check sealing ring (1) for damage and correct seating, replace if necessary.

Do not use any antiseize agent to install sealing ring/intake hose.

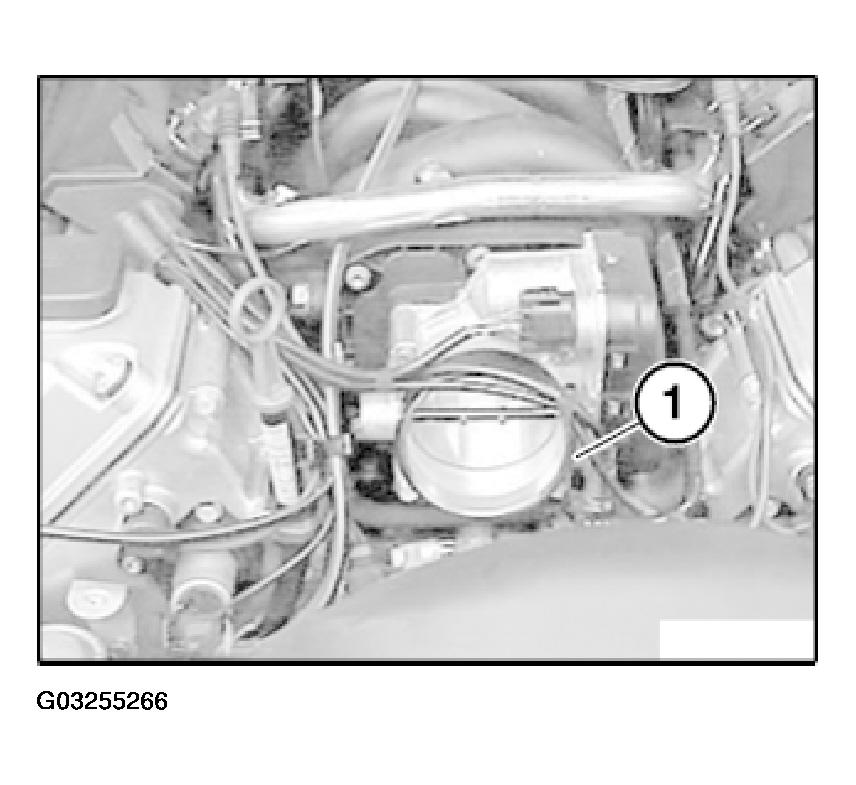

Fig 4: Checking Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.
