13 31 029 Checking delivery pressure of fuel pump (M62)

Switch off ignition.

Turn fasteners on acoustic cover 90° counterclockwise.

Remove acoustic cover.

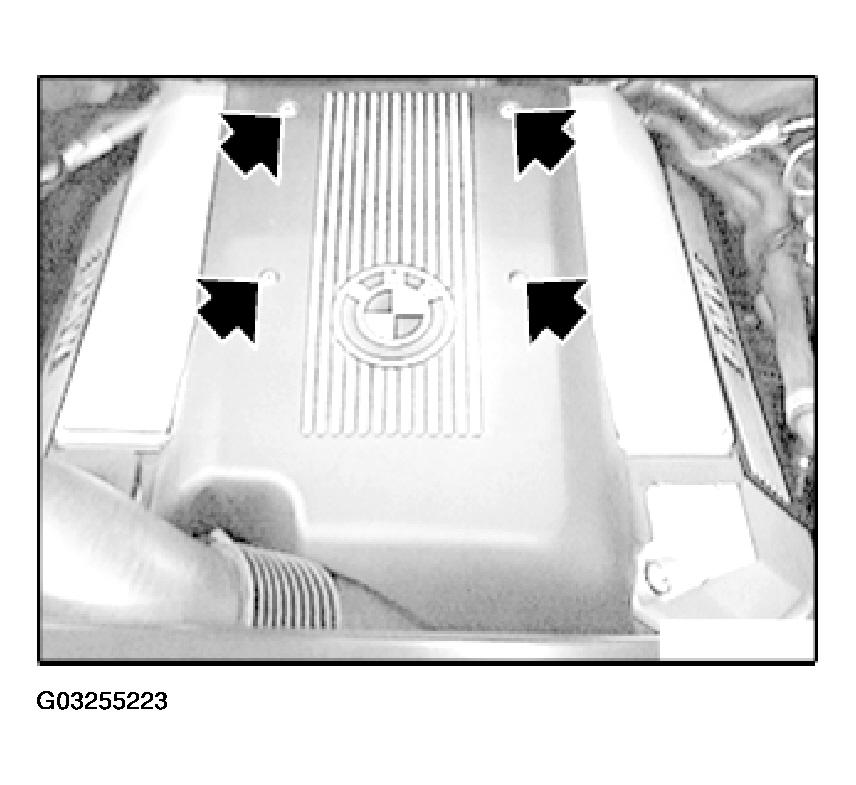

Fig 1: Removing Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove dust cap (1) from measuring valve on fuel rail.

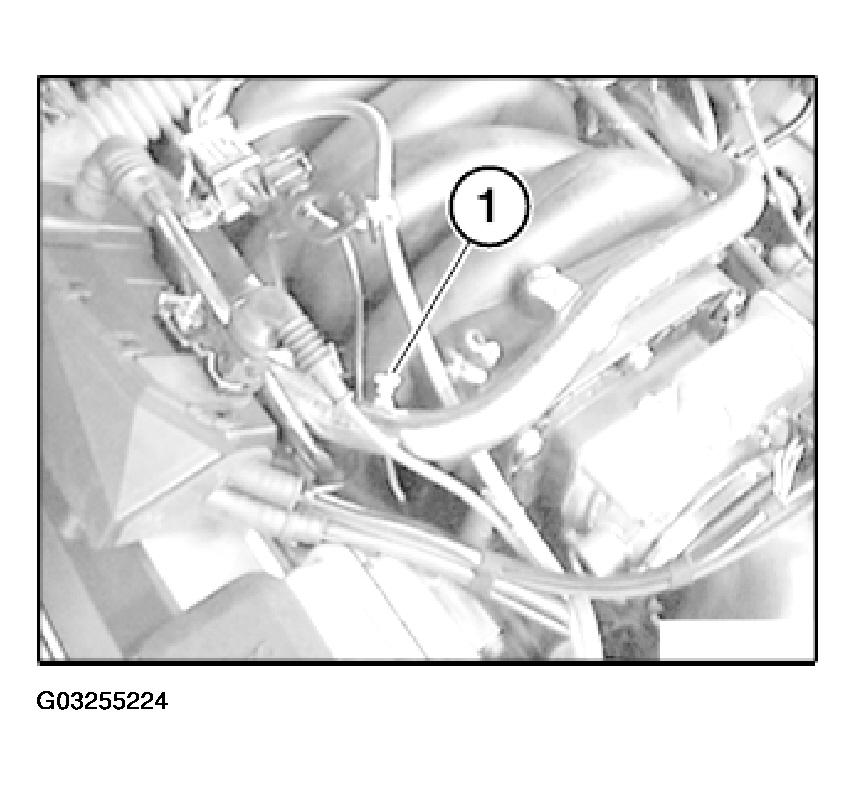

Fig 2: Removing Dust Cap From Measuring Valve On Fuel Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew check valve (1) on special tool kit 13 5 220.

Mount special tool kit 13 5 220 on fuel rail and tighten knurled nut until hand-tight.

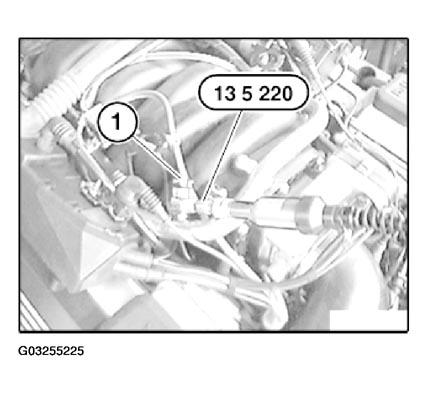

Fig 3: Connecting Fuel Pressure Tester (Special Tool Kit 13 5 220)

Courtesy of BMW OF NORTH AMERICA, INC.

Start engine.

Screw in check valve (1) until a pressure reading is indicated on DIS Tester.

Measuring fuel pressure:

• Connect pressure sensor to DIS Tester
• Start engine.
• Select MEASUREMENT
• Multimeter function appears
• Select PRESSURE TEST
• Read off fuel pressure

Test pressure,

refer to FUEL SYSTEM - TECHNICAL DATA - X5 (4.6L) .

Switch off engine.

Checking fuel pump:

Detach fuel pump relay,

refer to 13 63 590 REPLACING FUEL PUMP RELAY  .

Connect special tool 61 3 050 to terminal (87) and terminal (30) of fuel pump relay connector.

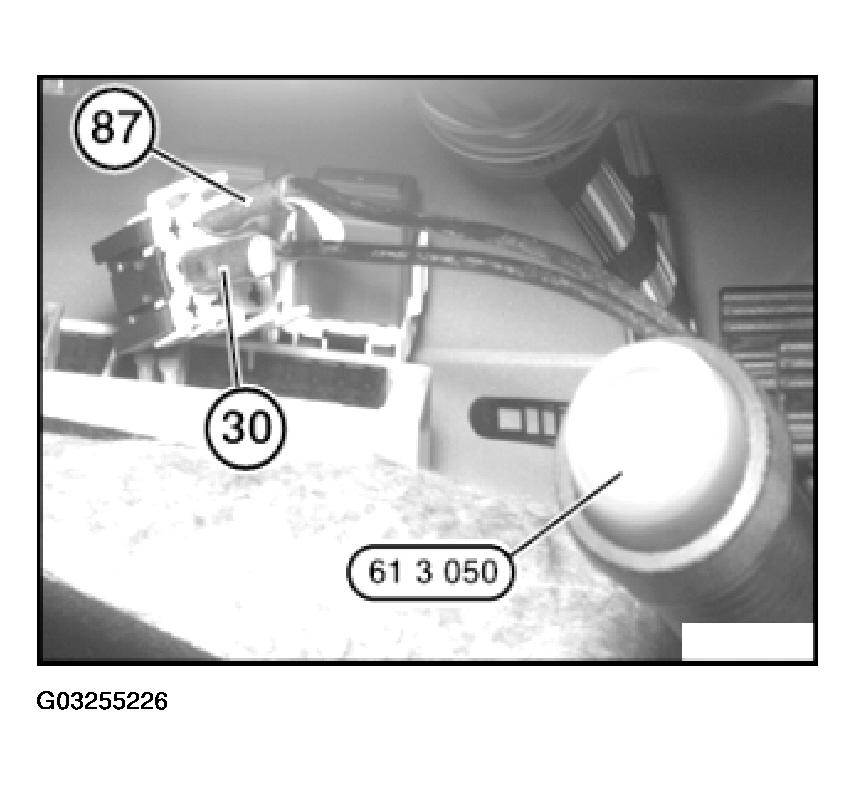

Fig 4: Connecting Special Tool 61 3 050 To Fuel Pump Relay

Courtesy of BMW OF NORTH AMERICA, INC.

Press button and read off fuel pump delivery pressure on DIS Tester.

Delivery pressure,

refer to 16 14 in FUEL SYSTEM - TECHNICAL DATA - X5 (4.6L) .

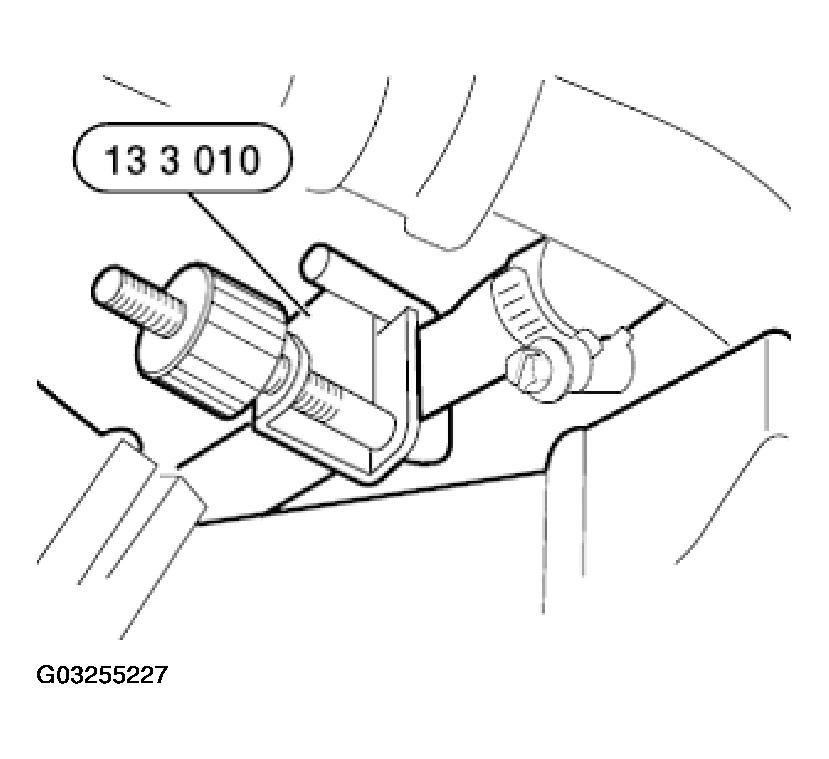

Fig 5: Clamping Fuel Feed Line With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Keep special tool 13 3 010 available for further tests.

Further procedure for checks,

refer to 13 31 ... NOTES ON FUEL PRESSURE CHECK (REFERENCE PRESSURE: ENVIRONMENT)  .

Installation:

Interrogate fault memory of DME control unit. Check stored fault messages. Rectify faults. Now clear the fault memory.
