11 22 513 Replacing roller bearing for dual-mass flywheel (N63)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

21 2 051
21 2 052

NOTE: Flywheel removed!

Using hydraulic press (1) and special tool 21 2 051, press roller bearing out of dual-mass flywheel downwards on engine side.

IMPORTANT: Risk of damage:
Roller bearing must not be driven out.

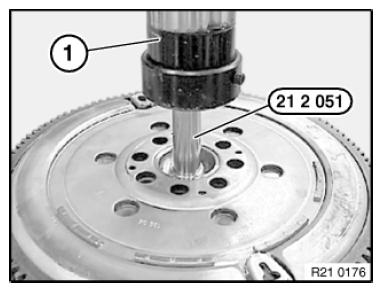

Fig 1: Pressing Roller Bearing Out Of Dual-Mass Flywheel Using Hydraulic Press

Courtesy of BMW OF NORTH AMERICA, INC.

Push roller bearing (2) onto special tool 21 2 052.

Using hydraulic press (1), press roller bearing into dual-mass flywheel as far as it will go on clutch side.

IMPORTANT: Risk of damage:
Observe press-in instruction:

Fig 2: Pressing Roller Bearing Into Dual-Mass Flywheel Using Hydraulic Press

Courtesy of BMW OF NORTH AMERICA, INC.

Roller bearing must not be driven in.
Roller bearing mounting force/travel monitored:
Min. 2000 N 1 mm before end of pressing in.

Max. 15, 000 N during entire press-in procedure.
