11 00 598 Removing and installing engine on front axle (E72 N63)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

WARNING: Observe safety instructions for handling HYBRID CARS !
Disconnect high-voltage system FROM POWER .

Necessary preliminary tasks:

Remove FRONT AXLE with engine and transmission.

Release screws.

Installation note:

Replace screws.

Tightening torque 26 11 9AZ .

Fig 1: Locating Front Axle Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Slide propeller shaft towards rear and remove.

Fig 2: Removing Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Slide propeller shaft fully towards rear.

Sealing cup (1) must snap audibly into place and rest entirely on dust guard (2).

Fig 3: Installing Sealing Cup On Dust Guard

Courtesy of BMW OF NORTH AMERICA, INC.

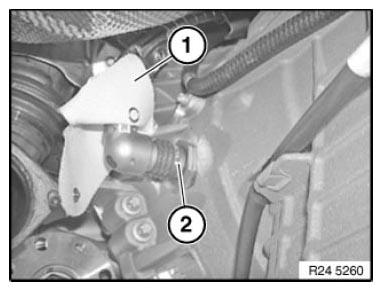

Open thermal protection coating (1).

Push lock (2) up to stop.

Disconnect connector and release high-voltage cable from holder.

Installation note:

Lock (2) must snap audibly into place.

Perform pull-off test to check whether plug connection is locked.

Fig 4: Identifying Thermal Protection Coating And Lock

Courtesy of BMW OF NORTH AMERICA, INC.

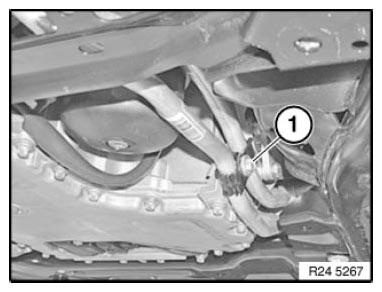

Release screw (1) and holder from gearbox oil lines.

Tightening torque 17 22 3AZ .

Fig 5: Identifying Gearbox Oil Lines Holder Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

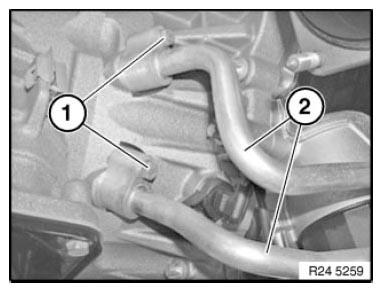

Release screws (1).

Tightening torque 17 22 1AZ .

Disconnect hydraulic lines (2) to transmission oil cooler.

Seal off connections and lines with plugs!

Installation note:

Replace sealing rings.

Fig 6: Identifying Hydraulic Lines And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

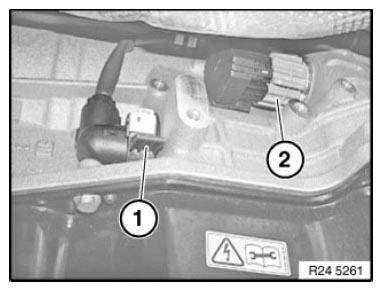

Disconnect plug (1).

Insert special tool 24 2 390 in sealing sleeve (1).

Disconnect plug (2).

Seal sealing sleeve (2) with suitable means (e.g. adhesive tape) to prevent dirt contamination.

Release cable from holders.

Fig 7: Identifying Plug And Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove crankshaft sensor.

Disengage cable from holder (2).

Detach connector (3) from oil pressure switch.

Fig 8: Identifying Oil Pressure Switch Connector, Holder And Crankshaft Sensor Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip the transmission wiring harness from its holders (2 3 4 and 5).

Pull off the transmission wiring harness from the transmission at the holder (1).

Fig 9: Identifying Transmission Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

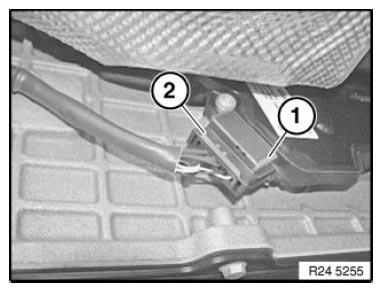

Unlock fuse (1) at the bottom and press together the locking clamps.

Pull off plug (2).

Fig 10: Identifying Fuse And Plug

Courtesy of BMW OF NORTH AMERICA, INC.

When unflanging the gearbox, pay attention to installation position of rubber plug (1).

NOTE: Graphic on ZF transmission.

Fig 11: Identifying Rubber Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 24 00 1AZ .

Screw guide pins 24 0 320 for guiding gearbox into two opposite screw points while dismantling.

In this position, the gearbox is pulled off the gearbox input shaft.

Fig 12: Locating Gearbox Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not release wishbone from swivel bearing with impact tool.
Make sure special tool rests correctly on steel bush of swivel bearing. The swivel bearing must be removed if the steel bushing moves.
Rubber boot of wishbone must not be damaged!
Do not pull stainless steel ring off journal.

Slacken nut (1) two to three thread turns.

If necessary, replace lower section 31 2 242 with lower section 31 2 247 .

Press wishbone (2) with special tool 31 2 240 ) off swivel bearing.

Unscrew nut (1) and remove wishbone (2) from swivel bearing.

Installation note:

Fig 13: Removing Wishbone From Swivel Bearing Using Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Keep wishbone to swivel bearing connection clean and free from oil and grease.

Replace self-locking nut.

Tightening torque 31 12 4AZ .

Slacken nut (1) two to three thread turns.

If necessary, replace lower section 31 2 242 with lower section 31 2 247

Press trailing link (2) with special tool 31 2 240 off swivel bearing.

Unscrew nut (1) and remove trailing link (2) from swivel bearing.

Installation note:

Keep trailing link to swivel bearing connection clean and free from oil and grease.

Fig 14: Removing Trailing Link From Swivel Bearing Using Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Replace self-locking nut.

Tightening torque 31 12 2AZ .

Slacken nut (1) two to three thread turns.

If necessary, replace lower section 31 2 242 with lower section 31 2 246

Press track rod end (2) with special tool 31 2 240 off swivel bearing.

Unscrew nut (1) and remove track rod end (2) from swivel bearing.

Installation note:

Fig 15: Removing Track Rod End From Swivel Bearing Using Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Keep track rod end to swivel bearing connection clean and free from oil and grease.

Replace self-locking nut.

Tightening torque 32 21 3AZ .

Release screw and remove oil lines (2).

Tightening torque, 17 22 4AZ.

Installation note:

Replace sealing rings.

Recycling:

Catch and dispose of escaping oil with auxiliary materials.

Fig 16: Locating Oil Lines Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove swivel bearing (1) with brake disc and drive shaft (3) with the aid of a workshop crane (2).

Do not bend output shaft (3) too far, note deflection angle.

The graphic shows the procedure on the left swivel bearing; the procedure on the right swivel bearing is identical.

Fig 17: Removing Swivel Bearing With Brake Disc And Drive Shaft Using Workshop Crane

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Lay ground strap (2) to one side.

Fig 18: Identifying Ground Strap And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

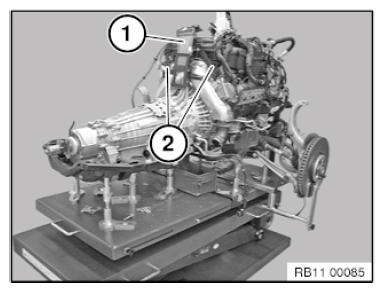

Release all nuts (2).

Release holder for high-voltage cable (1).

Fig 19: Identifying High-Voltage Cable Holder And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

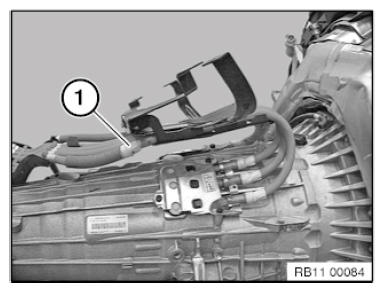

Fold back high-voltage cable (1).

Fig 20: Identifying High-Voltage Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Release all screws on transmission.

Tightening torque 24 00 1AZ .

Installation note:

Screws have different lengths.

Note installation position.

Fig 21: Transmission Housing Bolts Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Slightly raise engine with workshop crane and special tool 11 0 020 .

This simplifies removal and installation of transmission.

Fig 22: Lifting Engine From Front Axle Using Workshop Crane And Special Tool (11 0 020)

Courtesy of BMW OF NORTH AMERICA, INC.

Recycling:

Capture emerging transmission oil with a suitable drip tray.

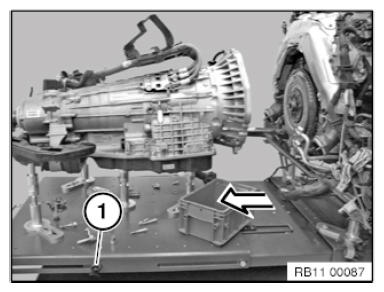

Release mounting bolt (1) on table lift.

Detach mounting plate (B) with transmission from engine in direction of arrow.

Fig 23: Removing Mounting Plate With Transmission From Engine

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Raise engine.

Installation note:

Replace self-locking nuts.

Tightening torque 22 11 2AZ .

Fig 24: Identifying Left And Right Engine Support Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Lift engine (1) with workshop crane (2) and special tool 11 0 020 from front axle.

Mount engine on assembly stand.

Fig 25: Lifting Engine From Front Axle Using Workshop Crane And Special Tool (11 0 020)

Courtesy of BMW OF NORTH AMERICA, INC.
