11 00 598 Check the loss of pressure for all cylinders E72 (N63)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 302 630

WARNING: High-voltage system - danger to life!

WARNING: The following points must be strictly observed prior to starting work:

Disconnect HIGH-VOLTAGE SYSTEM FROM POWER
Observe SAFETY INSTRUCTIONS for handling with hybrid cars

Necessary preliminary tasks:

Remove SPARK PLUGS .

Prepare the pressure hose (1) with number 60.

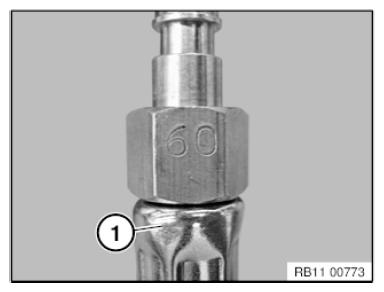

Fig 1: Identifying Pressure Hose With Number 60

G08576026

Courtesy of BMW OF NORTH AMERICA, INC.

Hand-tighten the pressure hose (1) in the cylinder to be measured.

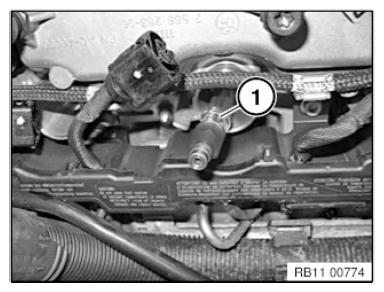

Fig 2: Identifying Pressure Hose

G08576027

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the OT finder (1) to the pressure hose.

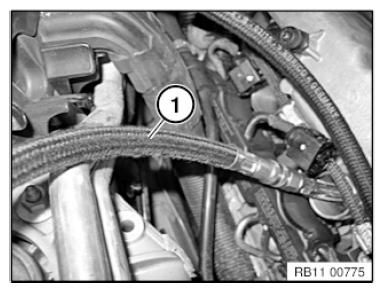

Fig 3: Identifying Pressure Hose OT Finder

G08576028

Courtesy of BMW OF NORTH AMERICA, INC.

Turn the engine at the central bolt until the OT finder (1) extends up with the piston (2) and displays the OT point.

If necessary, block the crankshaft mechanically.

Fig 4: Identifying OT Finder And Piston

G08576029

Courtesy of BMW OF NORTH AMERICA, INC.

The measuring device (2) must be adjusted prior to the loss of pressure check (note manufacturer information).

Connect the measuring device 2 302 630 to the pressure hose (3).

Connect the compressed air hose (1) to the measuring device (2).

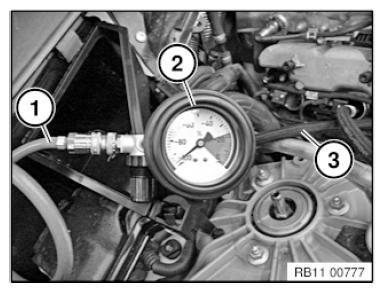

Fig 5: Connecting Measuring Device (2 302 630) To Pressure Hose

G08576030

Courtesy of BMW OF NORTH AMERICA, INC.

Loss of pressure values below 22 % must be viewed as I/O. values.

When the loss of pressure exceeds 22 %:

Determine possible fault causes, piston ring leaks (crankcase ventilation) and also intake valves (intake port) and exhaust valves (exhaust system).

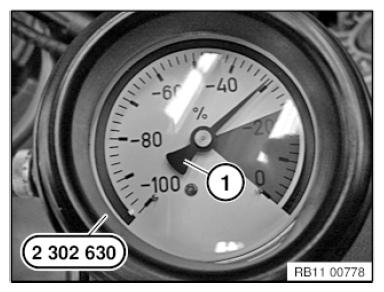

Fig 6: Identifying Measuring Device (2 302 630)

G08576031

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
