11 00 050 Removing and installing engine on front axle support (N63 hybrid)

Special tools required:

• 11 0 020
• 24 2 390

Necessary preliminary tasks:

• Remove ENGINE  together with front axle and gearbox
• Remove FRONT PROPELLER SHAFT
• Remove left and right output shaft: see LEFT OUTPUT SHAFT and RIGHT OUTPUT SHAFT .

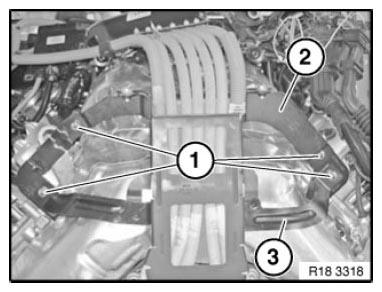

Release nuts (1) and place retaining bars (2, 3) on gearbox.

Fig 1: Identifying Gearbox Retaining Bars And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Open thermal protection coating (1).

Push lock (2) up to stop.

Disconnect connector and release high-voltage cable from holder.

Installation note:

Lock (2) must snap audibly into place.

Perform pull-off test to check whether plug connection is locked.

Fig 2: Identifying Thermal Protection Coating And Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 17 22 1AZ .

Disconnect hydraulic lines (2) to gearbox oil cooler.

Installation note:

Replace sealing rings.

Fig 3: Identifying Hydraulic Lines And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug (1).

Insert special tool 24 2 390 in sealing sleeve (1).

Disconnect plug (2).

Seal sealing sleeve (2) with suitable means (e.g. adhesive tape) to prevent dirt contamination.

Release cable from holders.

Fig 4: Identifying Plug And Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove crankshaft sensor.

Disengage cable from holder (2).

Detach connector (3) from oil pressure switch.

Fig 5: Identifying Oil Pressure Switch Connector, Holder And Crankshaft Sensor Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 24 00 1AZ .

Fig 6: Locating Gearbox Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

When unflanging the gearbox, pay attention to installation position of rubber plugs (1).

(Similar picture)

Fig 7: Identifying Rubber Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

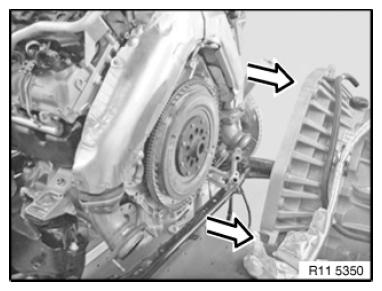

Release special tool and pull gearbox out rearwards.

Fig 8: Pulling Gearbox To Rearwards

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on engine mount on left and right. Tightening torque 22 11 2AZ .

Fig 9: Identifying Left And Right Engine Support Nut

Courtesy of BMW OF NORTH AMERICA, INC.

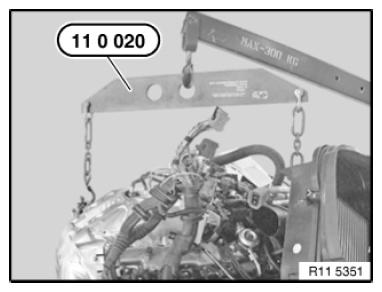

Suspend special tool from lifting eyes (1) at front and rear.

Lever engine out from front axle with special tool 11 0 020 .

Fig 10: Removing Engine From Front Axle Using Special Tool (11 0 020)

Courtesy of BMW OF NORTH AMERICA, INC.

Mount engine on assembly stand.

Assemble engine.
