34 21 200 Removing and installing or replacing brake pads on both rear disc brakes (Teves floating caliper)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

34 1 050
34 1 280

IMPORTANT:

Brake pad wear sensor: after removal it must be replaced (brake pad wear sensor loses its retention capability in the break pad).
Retaining spring: for vehicles older than 48 months it is recommended to replace the retaining spring!

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces for the brake pads on the brake caliper mounting bracket. Instead, clean with brake cleaner BMW part no. 83 19 2 154 780 and apply a thin coating of brake pad paste BMW part no. 83 19 2 158 851.

Necessary preliminary tasks:

Remove WHEELS .
Remove BRAKE PAD WEAR SENSOR

Lift out retaining spring (1).

Fig 1: Lifting Out Retaining Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover plug (1).

Fig 2: Identifying Cover Plug

Courtesy of BMW OF NORTH AMERICA, INC.

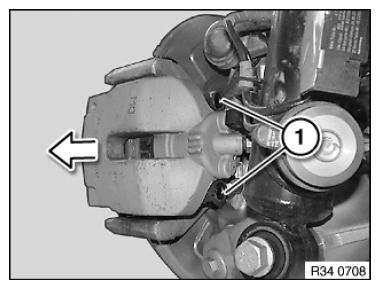

Unscrew guide bolts (1).

Withdraw brake caliper backwards.

IMPORTANT: Tie brake caliper back and do not allow to hang from brake hose.

Installation note:

Tightening torque 34 21 4AZ .

Clean guide screws only; do not grease.

Check threads.

Replace all guide bolts which are not in perfect condition.

Fig 3: Removing Brake Caliper With Guide Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When pressing down piston, note brake fluid level in expansion tank.
Overflowing brake fluid will damage the paintwork.

Turn piston back fully with special tool 34 1 050.

Fig 4: Turning Back Piston With Special Tool 34 1 050

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Mark any worn brake pads.
In the event of one-sided brake pad wear, do not change brake pads round.

Remove outer brake pad.

Inner brake pad is located with its spring in the piston.

Clean brake pads.

Do not grease backs of brake pads sleeve.

Fig 5: Removing Outer Brake Pad

Courtesy of BMW OF NORTH AMERICA, INC.

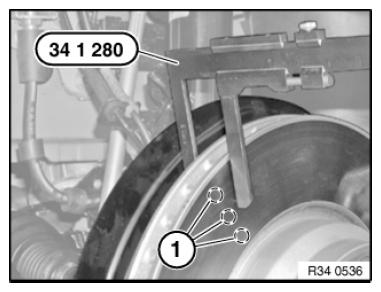

Check minimum brake disc thickness:

Position special tool 34 1 280 at three measuring points in area (1) and measure.
Compare measurement result and lowest value with SETPOINT VALUE .

Fig 6: Checking Minimum Brake Disc Thickness
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: New brake pads may only be fitted if the brake disc thickness is greater than the MINIMUM BRAKE DISC THICKNESS (MIN TH).

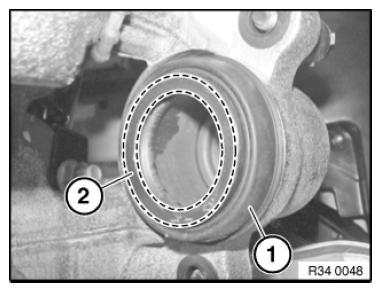

Check dust boot (1) for damage and replace if necessary.

IMPORTANT: Dust boot must not come into contact with brake pad paste as this may cause the dust boot to swell.

Clean contact surface (2) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Fig 7: Identifying Dust Boot And Contact Surface Of Brake Piston

Courtesy of BMW OF NORTH AMERICA, INC.

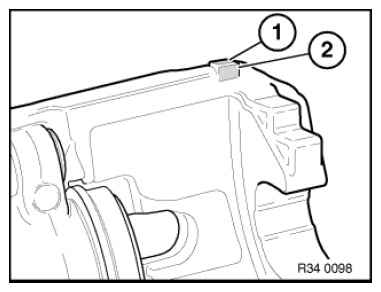

Clean contact surfaces (1...2) of brake pad tee heads/brake caliper housing with brake cleaner and apply a thin coating of brake pad paste.

Fig 8: Identifying Contact Surfaces Of Brake Pad Tee Heads/Brake Caliper Housing

Courtesy of BMW OF NORTH AMERICA, INC.

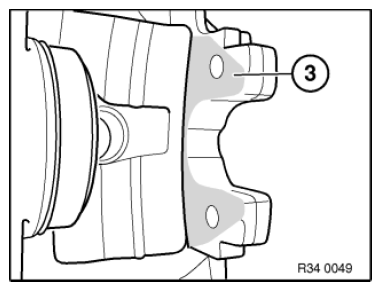

Clean contact surface (3) of brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Fig 9: Identifying Contact Surface Of Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

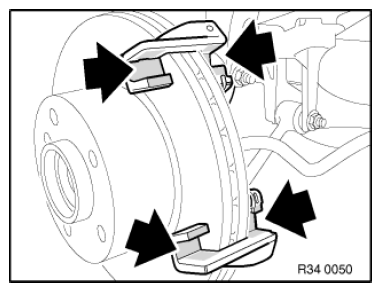

Fig 10: Locating Brake Pads Guide Surfaces On Brake Caliper Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After completing work:

Fully depress brake pedal several times so that brake pads contact brake discs.
When installing new brake pads at front and rear axles, brake fluid level must be brought up to "MAX" marking.
Read and comply with notes on BREAKING-IN NEW BRAKE DISCS/BRAKE PADS .
If necessary, when replacing pads, reset CBS display in accordance with factory specification.
