34 11 552 Overhauling left or right front brake caliper (brake caliper removed)

Special tools required:

• 00 9 316

Check guide sleeves (5), fitting repair-kit guide sleeve if necessary.

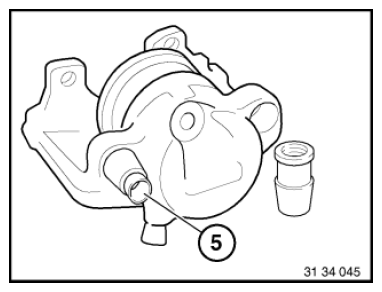

Fig 1: Identifying Guide Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully force piston out through connection bore with compressed air.

To protect piston, place a protective plate (e.g. hard wood or hard felt) in caliper recess.

Do not grip piston with fingers - risk of trapping!

Fig 2: Removing Piston From Connection Bore

Courtesy of BMW OF NORTH AMERICA, INC.

Press off dust sleeve (1).

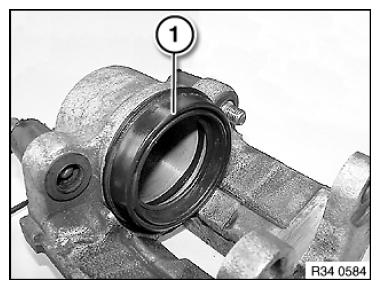

Fig 3: Identifying Dust Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully remove sealing ring (1) special tool 00 9 316 .

Clean cylinder bores and parts with alcohol and dry with compressed air.

Thoroughly inspect cylinder bore, piston and flange surfaces. Machining of cylinders and pistons is not permitted.

Install new seal.

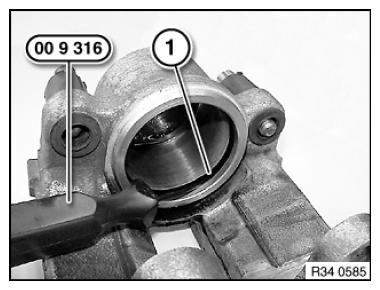

Fig 4: Removing Sealing Ring Using Special Tool (00 9 316)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Apply a light coat of Ate brake cylinder paste to cylinder bore, piston and seal (ATE brake cylinder paste, BMW part number 83 19 9 407 854, 180g tube).

Fit dust sleeve (1) in annular groove of piston (2).

Press piston into cylinder bore.

Evenly press dust sleeve (1) onto brake caliper housing as far as it will go.

Installation:

The area between the dust sleeve and the brake caliper housing must be kept dry. It must not come into contact with Ate brake cylinder paste or brake fluid so as to ensure that the dust sleeve is perfectly seated.

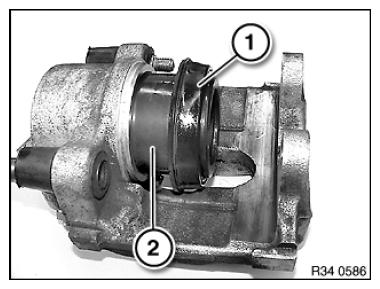

Fig 5: Identifying Dust Sleeve And Piston
