34 00 009 Checking brakes on test stand

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Only brake test stands with test speeds of 2.5-6 km/h may be used.
Before driving onto the brake test stand (dynamic brake analyzer), switch off the Hill Descent Control (HDC) and keep it switched off while testing the brakes.
The HDC indicator lamp must not light up!

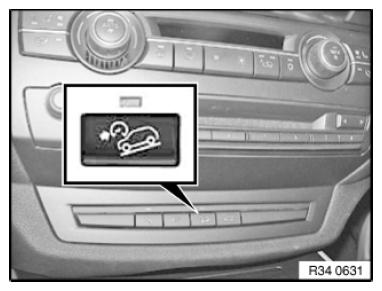

Fig 1: Identifying HDC Indicator Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: It is possible for the HDC indicator lamp to go out or not to light up even when HDC mode is activated if HDC is temporarily unavailable on account of high operating temperature.

Necessary preliminary tasks:

Check tires for damage
Check tire treads
Checking tire inflation pressure
The brakes must be at normal operating temperature. For this purpose, gently warm up the brake discs while dry by braking the vehicle several times.

IMPORTANT: For testing, turn on the ignition and make sure the transmission selector lever is in the "N" position.
Comfort access: insert remote control in ignition lock.

NOTE: If the remote control is not inserted in the ignition lock, the "P" transmission position is selected automatically after approx. 30 minutes.
Failure to comply with this instruction may result in damage to the test stand or to the vehicle.

Visual and function checks of actuating and warning devices.

Front brakes

Drive vehicle with front axle into roller dynamometer
Move transmission selector lever to "N" position
Start roller dynamometer
Press service brake pedal
Read off maximum brake power on left/right

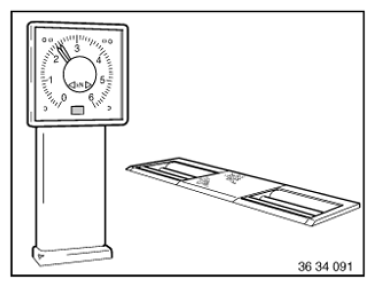

Fig 2: Identifying Brake Test Stand (Front Brakes)
Courtesy of BMW OF NORTH AMERICA, INC.

Rear brakes

Drive vehicle with rear axle into roller dynamometer
Move transmission selector lever to "N" position
Start roller dynamometer
Press service brake pedal
Read off maximum brake power on left/right

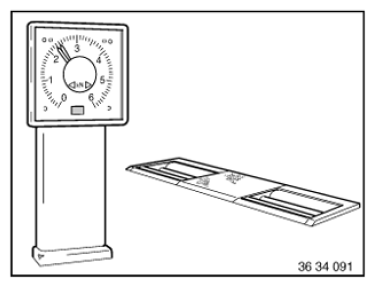

Fig 3: Identifying Brake Test Stand (Rear Brakes)
Courtesy of BMW OF NORTH AMERICA, INC.

Parking brake

IMPORTANT: The test may only be carried out with the engine switched off, the transmission selector lever in the "N" position and the ignition switched on.

NOTE: The electromechanical parking brake can not be tested on a plate test stand!

Fig 4: Identifying Brake Test Stand (Parking Brakes)

Courtesy of BMW OF NORTH AMERICA, INC.

Drive vehicle with rear axle into roller dynamometer
Move transmission selector lever to "N" position
Turn off engine.
NOTE: When the engine is running, additional braking action will otherwise be exerted by the DSC system on all the wheels.
Turn on ignition
Start roller dynamometer
Activate parking brake, pull button (1) for this purpose
NOTE: Parking brake indicator lamp in instrument cluster lights up red. Duo-servo brake (actuating unit) is applied. Roller dynamometer shuts down after locking of wheels (slip) or vehicle is pushed out of roller dynamometer
Deactivate parking brake:

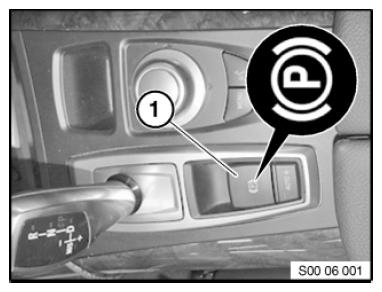

Fig 5: Identifying Parking Brake Button
Courtesy of BMW OF NORTH AMERICA, INC.
- Press button (1) and simultaneously press service brake pedal
  NOTE: Duo-servo brake (actuating unit) is released.
Read off maximum brake power on left/right

Fig 6: Identifying Brake Test Stand

Courtesy of BMW OF NORTH AMERICA, INC.
