34 33 330 Removing and installing/replacing SBA control unit
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
High-voltage system - danger to life!
WARNING:
Compliance with the following points is mandatory before beginning work:
- Observe SAFETY INSTRUCTIONS for handling with hybrid vehicles
Necessary preliminary tasks:
- Read and comply with GENERAL INFORMATION .
- Remove LEFT MICROFILTER HOUSING COVER
- Extract brake fluid
NOTE:
Extract brake fluid out of expansion tank. Use a suction bottle used exclusively for drawing off brake fluid.
Do not reuse drawn out brake fluid.
Do not reuse drawn out brake fluid.
After completing work:
IMPORTANT:
Do not mix up brake lines.
If necessary, mark before removal.
Brake lines must not be bent.
Close off connection bores with plugs.
If necessary, mark before removal.
Brake lines must not be bent.
Close off connection bores with plugs.

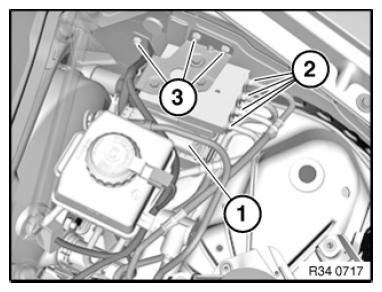

Disconnect plug connection (1).
Unfasten brake lines (2).
Tightening torque 34 32 1AZ .
Release screws (3).
Tightening torque 34 51 6AZ .
Remove control unit (SBA) with holder.
