34 33 280 Removing and installing brake booster vacuum pressure sensor
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
High-voltage system - danger to life!
WARNING:
Compliance with the following points is mandatory before beginning work:
- Observe SAFETY INSTRUCTIONS for handling with hybrid vehicles
Necessary preliminary tasks:
- Read and comply with GENERAL INFORMATION .
- Remove LEFT MICROFILTER HOUSING COVER
Detach plug connection from SBA control unit.

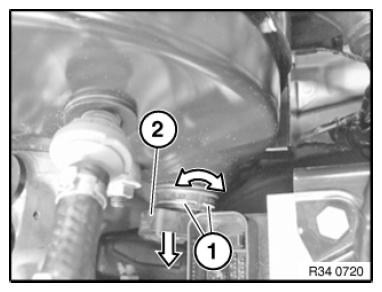

Press spring collar (1) apart in direction of arrow.
Carefully remove vacuum pressure sensor (2) from brake booster in direction of arrow.
Disconnect and remove plug connection on vacuum pressure sensor.

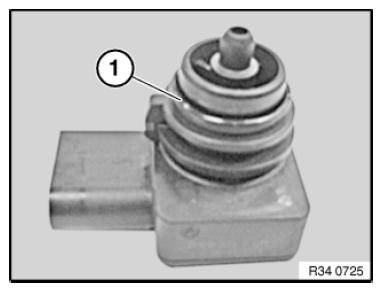

Check sealing ring (1) on vacuum sensor and replace if necessary.
