34 33 240 Removing and installing diaphragm travel sensor

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: High-voltage system - danger to life!

WARNING: Compliance with the following points is mandatory before beginning work:

Observe SAFETY INSTRUCTIONS for handling with hybrid vehicles

Necessary preliminary tasks:

Remove BRAKE MASTER CYLINDER
Read and comply with GENERAL INFORMATION .

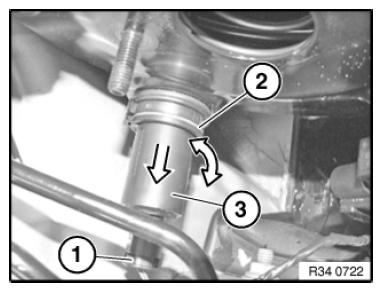

Disconnect plug connection (1).

Push ring spring (2) apart in direction of arrow.

Carefully pull travel sensor (3) in direction of arrow from brake servo.

Fig 1: Pulling Travel Sensor From Brake Servo

Courtesy of BMW OF NORTH AMERICA, INC.

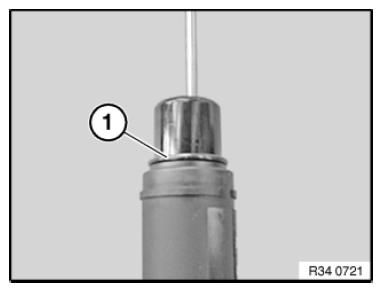

Check sealing ring (1) on travel sensor and replace if necessary.

Fig 2: Identifying Sealing Ring On Travel Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
