34 33 210 Replace electrical vacuum pressure pump
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
High-voltage system - danger to life!
WARNING:
Compliance with the following points is mandatory before beginning work:
- Observe SAFETY INSTRUCTIONS for handling with hybrid vehicles

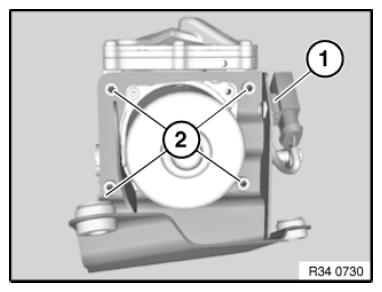

Remove holder for plug connection (1).
Release screws (2) and remove bracket for electrical vacuum pressure pump.
Installation:
Replace screws.
Tightening torque 34 33 4AZ .
