34 33 200 Removing and installing electric vacuum pump

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: High-voltage system - danger to life!

WARNING: Compliance with the following points is mandatory before beginning work:

Observe SAFETY INSTRUCTIONS for handling with hybrid vehicles

Necessary preliminary tasks:

LOWER FRONT AXLE
Read and comply with GENERAL INFORMATION .

Disconnect plug connection (1).

Unlock quick-connect coupling (2) and detach vacuum line.

Release nut (3) and detach lines (4) from bracket and place to one side.

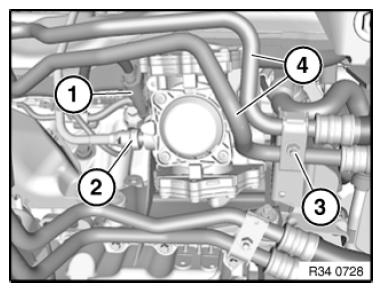

Fig 1: Identifying Plug Connection, Quick-Connect Coupling, Nut And Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove electrical vacuum pump (2).

Installation:

Replace screws.

Tightening torque 34 33 3AZ .

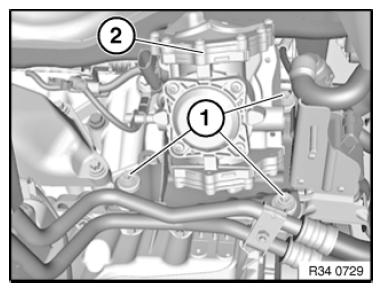

Fig 2: Identifying Screws And Electrical Vacuum Pump
