61 31 241 Removing and installing/replacing bonnet/hood contact switch

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove RIGHT BONNET/HOOD LOCK

Release screw (1).

Remove bonnet/hood contact switch (2) from bonnet/hood lock (3).

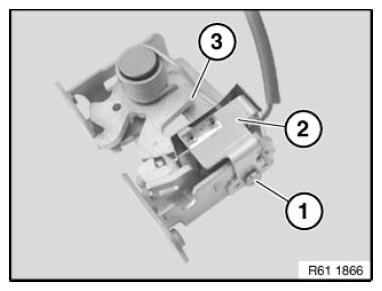

Fig 1: Identifying Bonnet/Hood Contact Switch, Lock And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
