61 31 172 Removing and installing/replacing switch for electromechanical parking brake
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Prior to replacement of parking brake, perform test module in diagnosis system:
- PL4
- 02 Chassis and suspension
- Parking brake
- Parking brake wiring harness
- B3440_L4EMFLEI-Kabelbaum Parking brake wiring harness
Necessary preliminary tasks:
- Disconnect negative battery cable (to avoid fault memory entries)
- Remove COVER FOR GEAR SELECTOR SWITCH

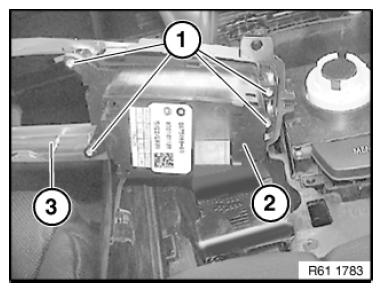

Release screws (1) and remove switch for electromechanical parking brake (2) from cover for gear selector switch (3).
