61 31 091 Removing and installing/replacing switch for (rear) left or right seat heating
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:

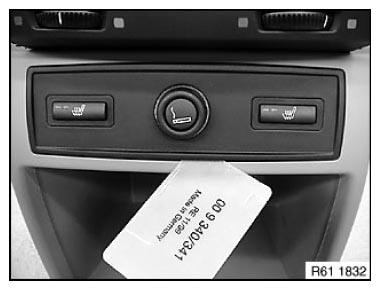

Use special tool 00 9 340 to release trim in center console.
Installation note:
Retaining lugs of trim must not be damaged or missing.
Make sure trim is correctly engaged on center console.

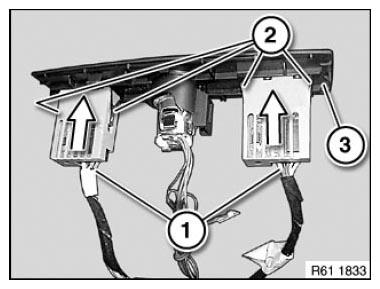

Disconnect left or right plug connection (1).
Press together retaining lugs (2) of left or right switch for seat heating and feed switch for seat heating in direction of arrow out of trim (3).
Installation note:
Make sure switch for seat heating is correctly seated in trim (3).
