61 31 011 Removing and installing/replacing volute spring cassette

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove STEERING-COLUMN SWITCH CLUSTER

Unlock catch (1) and remove volute spring cassette (2) in direction of arrow from steering column switch cluster (3).

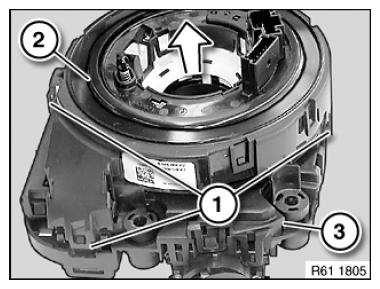

Fig 1: Disconnecting Volute Spring Cassette From Steering Column Switch Cluster

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Do not turn ring (1).
Also turning ring (1) through 360° is not permitted!
Secure ring (1) against unauthorized turning.

Installation:

Marking (2) must line up with marking (3).

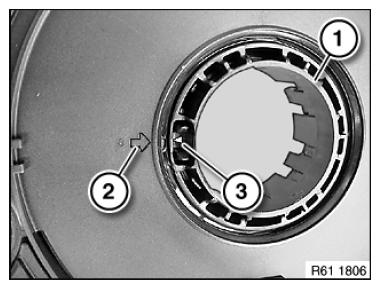

Fig 2: Identifying Ring And Marking

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Drive pin (1) of volute spring (2) must line up correctly with opening (3) in inner ring of steering column switch cluster.

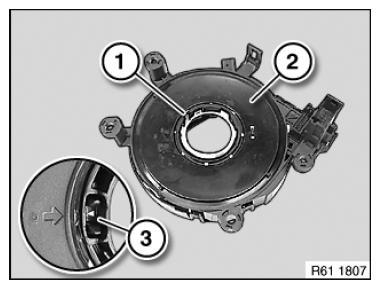

Fig 3: Identifying Volute Spring, Pin And Inner Opening

Courtesy of BMW OF NORTH AMERICA, INC.
