61 33 050 Removing and installing/replacing left fanfare horn

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Without engine oil cooler:
Remove GRILLE IN BUMPER TRIM ON LEFT
With engine oil cooler:
Remove FRONT BUMPER TRIM .

NOTE: Work is shown on the E70 (without engine oil cooler) by way of example. There may be differences in detail in the case of other vehicle models.

WARNING: Risk of injury!

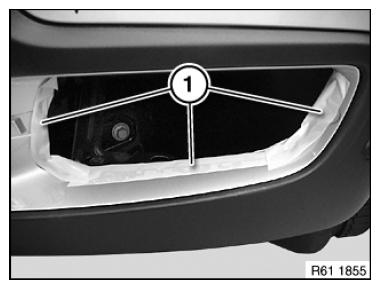

Tape off edges (1) of bumper trim.

Fig 1: Identifying Bumper Trim Edges

Courtesy of BMW OF NORTH AMERICA, INC.

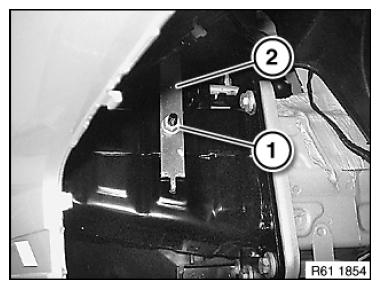

Release nut (1) and pull holder with fanfare horn (2) forwards slightly. Tightening torque 61 33 4AZ .

Disconnect associated plug connection and remove holder with fanfare horn (2).

Fig 2: Identifying Fanfare Horn And Nut

Courtesy of BMW OF NORTH AMERICA, INC.
