61 35 958 Removing and installing/replacing interior aerial/antenna for comfort access system on left or right (luggage compartment, side)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove panel for luggage compartment floor or fold upwards

Release expanding rivets (1).

Move panel (2) downwards.

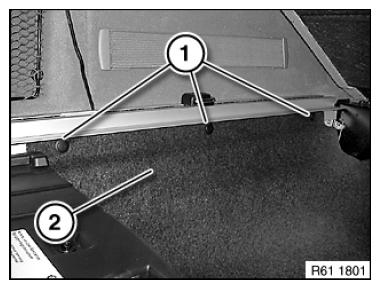

Fig 1: Identifying Luggage Compartment Floor Panel And Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Release screws (2) and remove interior aerial/antenna for comfort access system (3).

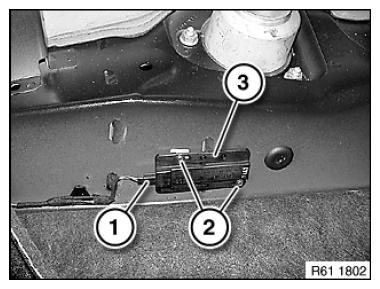

Fig 2: Identifying Comfort Access System, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
