61 12 002 Replacing positive battery cable (from battery to luggage compartment cable connector)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INFORMATIONS for handling vehicle battery.
Follow instructions on INTELLIGENT BATTERY SENSOR (IBS) .

IMPORTANT: Do not under any circumstances pull or lever safety battery terminal off by force.

Necessary preliminary tasks:

Disconnect battery earth lead
Only E72: Disconnect BOTH BATTERY EARTH LEADS

Disconnect plug connection (1).

Open cover and release nut (2). Tightening torque 61 21 2AZ .

Open cover (3) and slacken nut underneath. Tightening torque 61 21 1AZ .

Using a suitable tool, expand locking bracket (4) at lower end and clip out.

Raise power distribution box slightly and remove safety battery terminal.

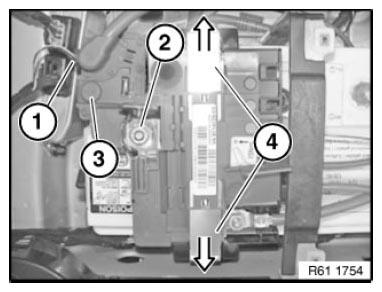

Fig 1: Releasing Power Distribution Box Cover Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Unclamp cover (1) from cable shoe mounting.

Slacken nut (2). Tightening torque 61 12 3AZ .

Disconnect positive battery cable.

Installation note:

Risk of short circuits!

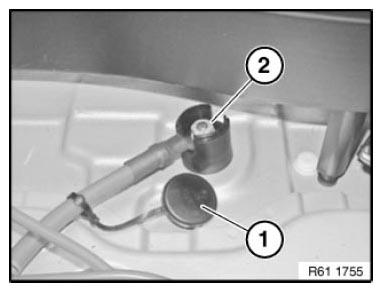

Fig 2: Identifying Cable Shoe Mounting Cover And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure positive battery cable is correctly seated on cable shoe mounting.
