12 42 500 Removing and installing or replacing battery positive lead (between starter motor, alternator and battery positive support point) (M62)

Interrogate fault memory of DME control unit.

Switch off ignition.

Disconnect battery negative lead from battery.

Observe safety instructions for handling vehicle battery.

Disconnect negative battery lead.

Remove reinforcement plate.

Release screws.

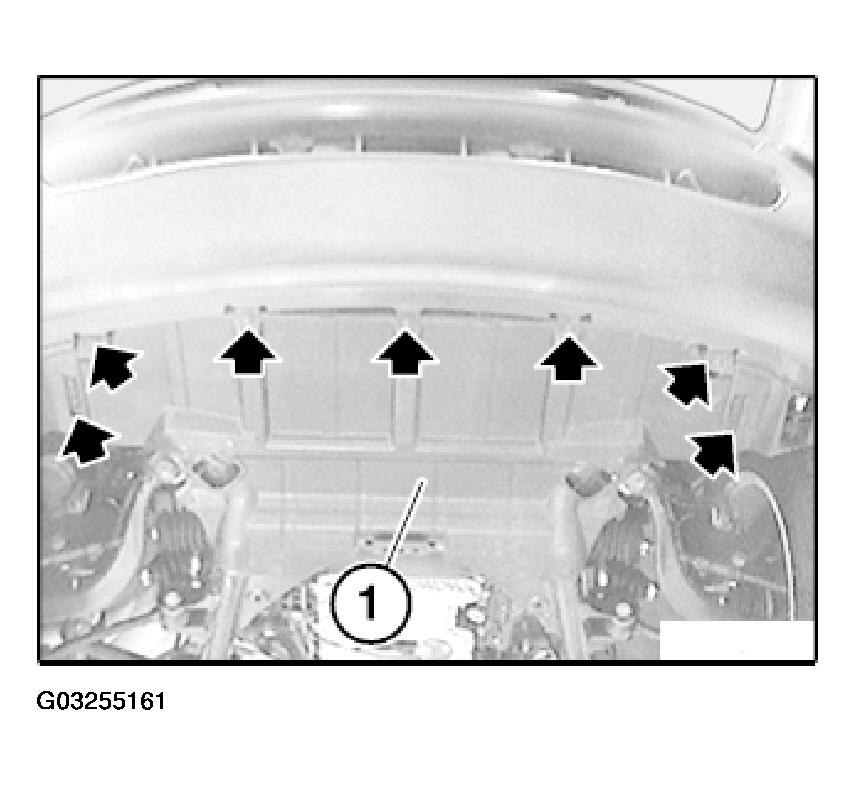

Remove underbody paneling (1).

Fig 1: Removing Underbody Paneling

Courtesy of BMW OF NORTH AMERICA, INC.

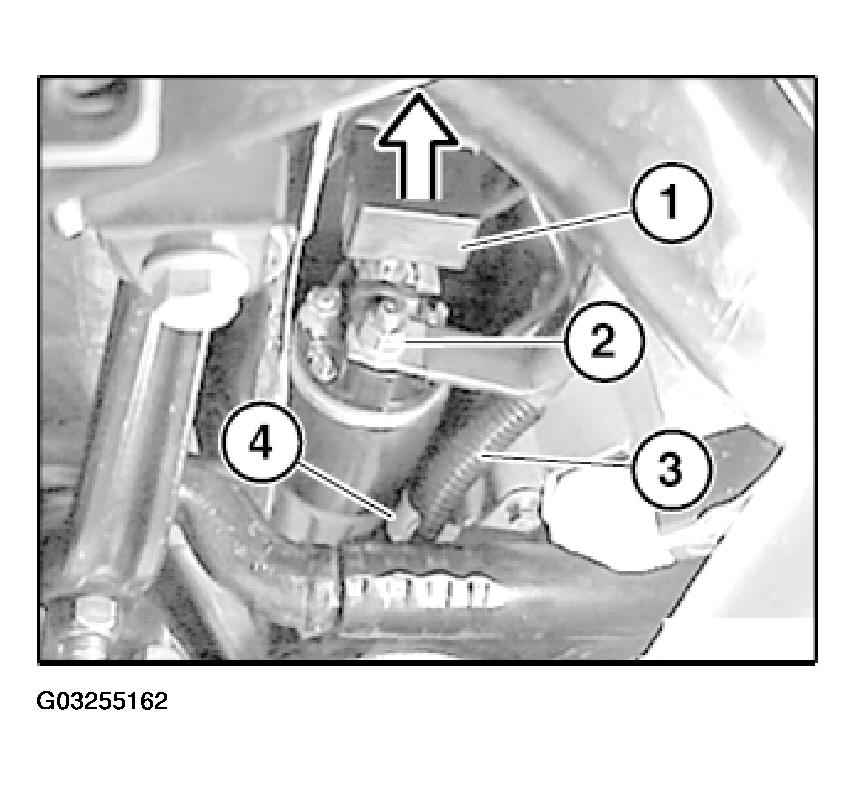

Remove protective cap (1) of battery positive lead from starter motor.

Release nut (2).

Tightening torque, refer to 12 41 4AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES - X5 4.6L .

Disconnect battery positive lead from starter motor.

Unclip battery positive lead from holders.

Fig 2: Removing Protective Cap From Starter Motor

Courtesy of BMW OF NORTH AMERICA, INC.

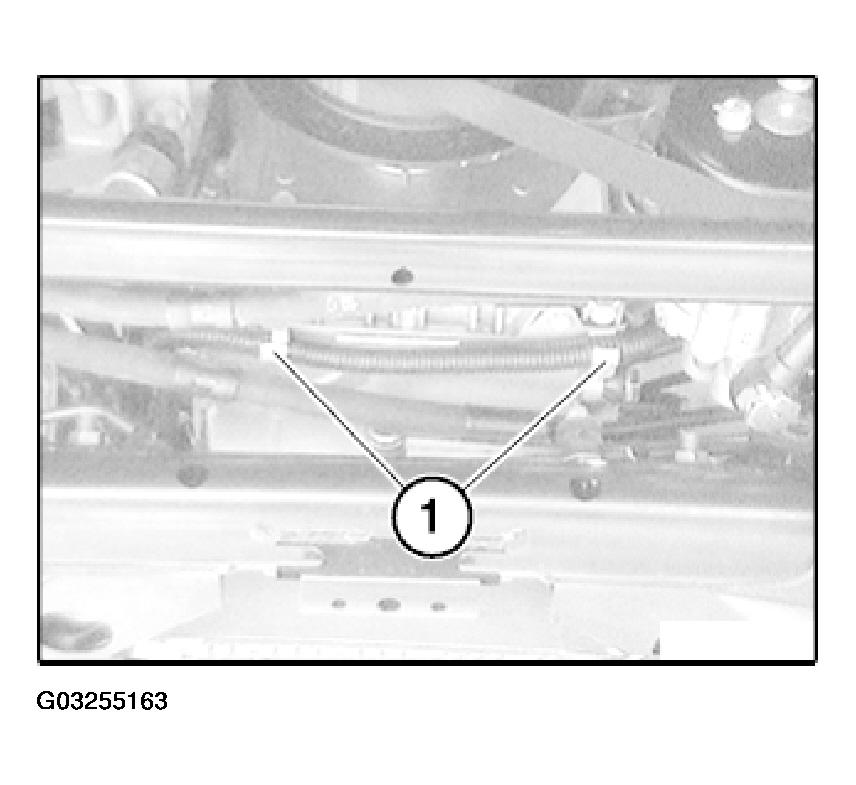

Unclip battery positive lead from holders (1) on upper oil sump section.

Fig 3: Removing Battery Positive Lead From Holders

Courtesy of BMW OF NORTH AMERICA, INC.

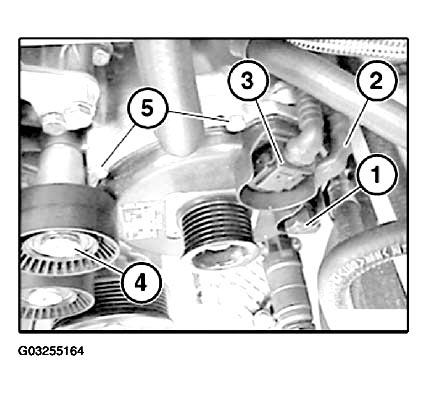

Release nut (1).

Disconnect battery positive lead (2) from alternator. Tightening torque, refer to 12 31 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES - X5 4.6L .

Fig 4: Disconnecting Connector Plug Alternator

Courtesy of BMW OF NORTH AMERICA, INC.

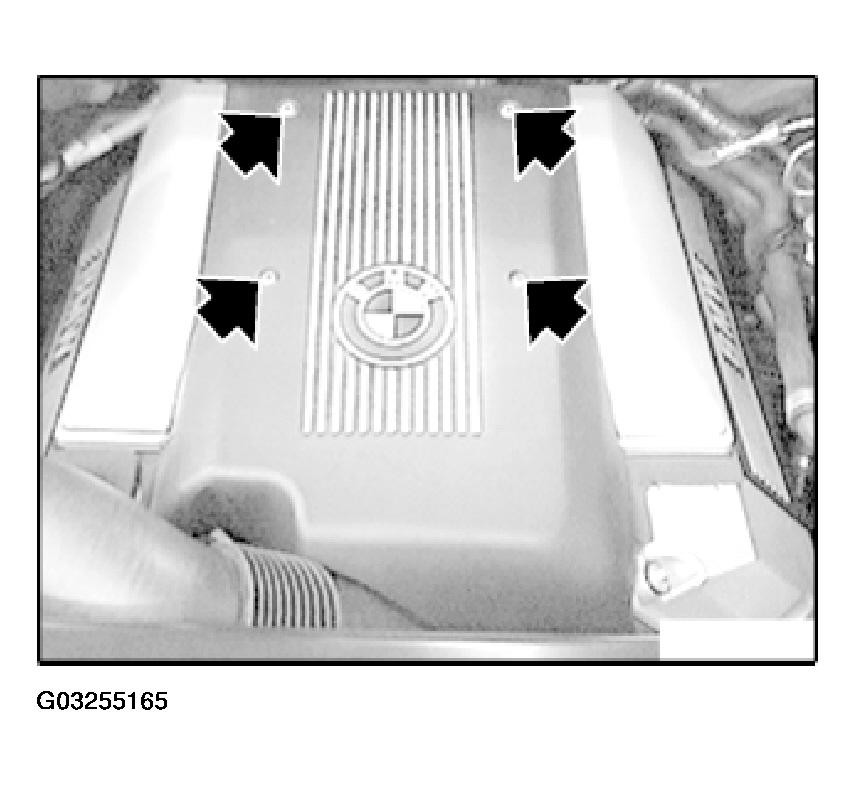

Turn fasteners on acoustic cover 90° counterclockwise.

Remove acoustic cover.

Fig 5: Removing Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

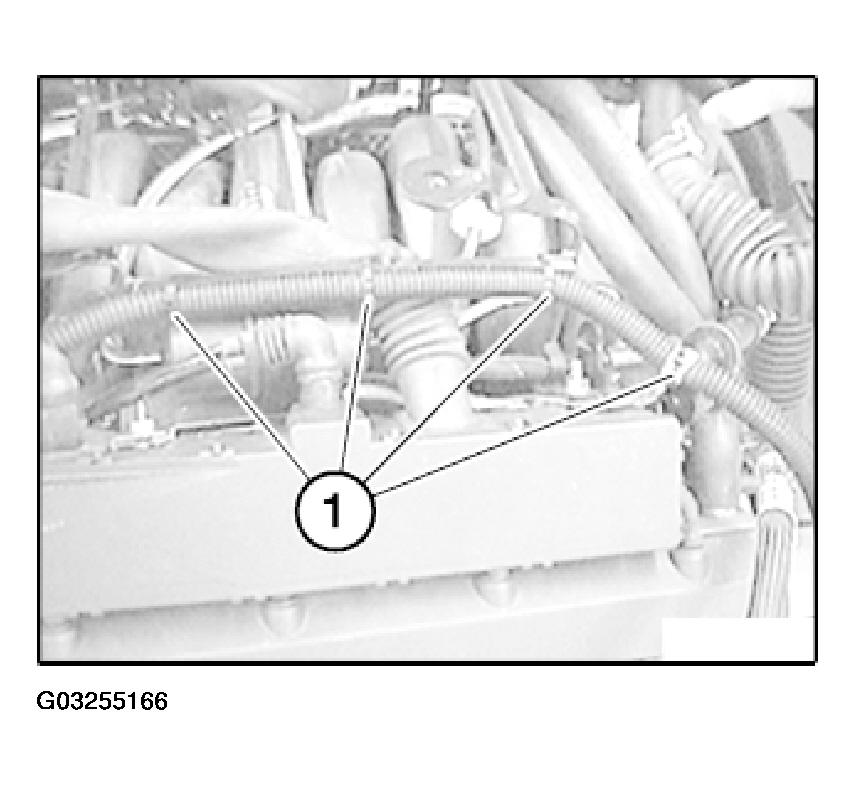

Release cable ties (1).

Fig 6: Removing Cable Ties

Courtesy of BMW OF NORTH AMERICA, INC.

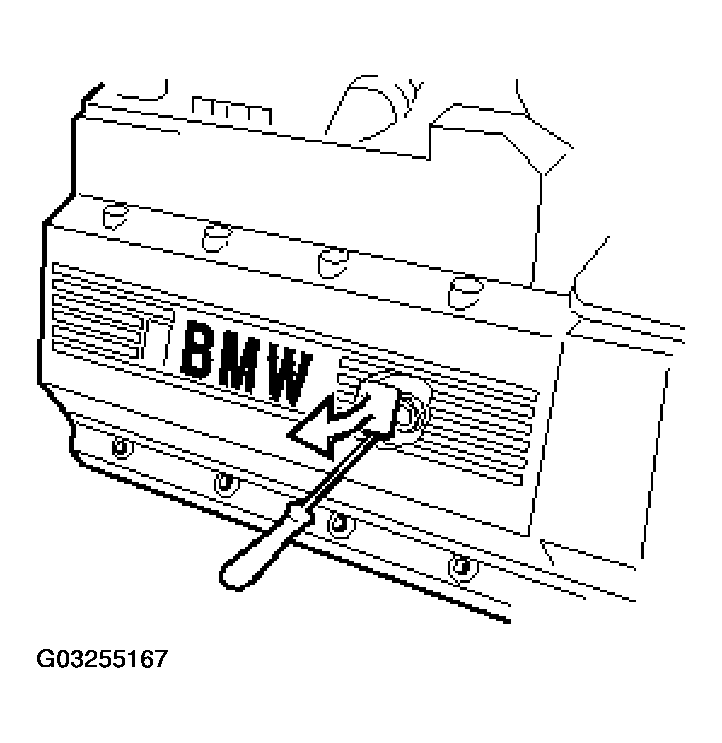

Remove sealing caps on cover of ignition coils on left.

Release nuts.

Remove cover on ignition coils on left.

Fig 7: Removing Ignition Coil Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

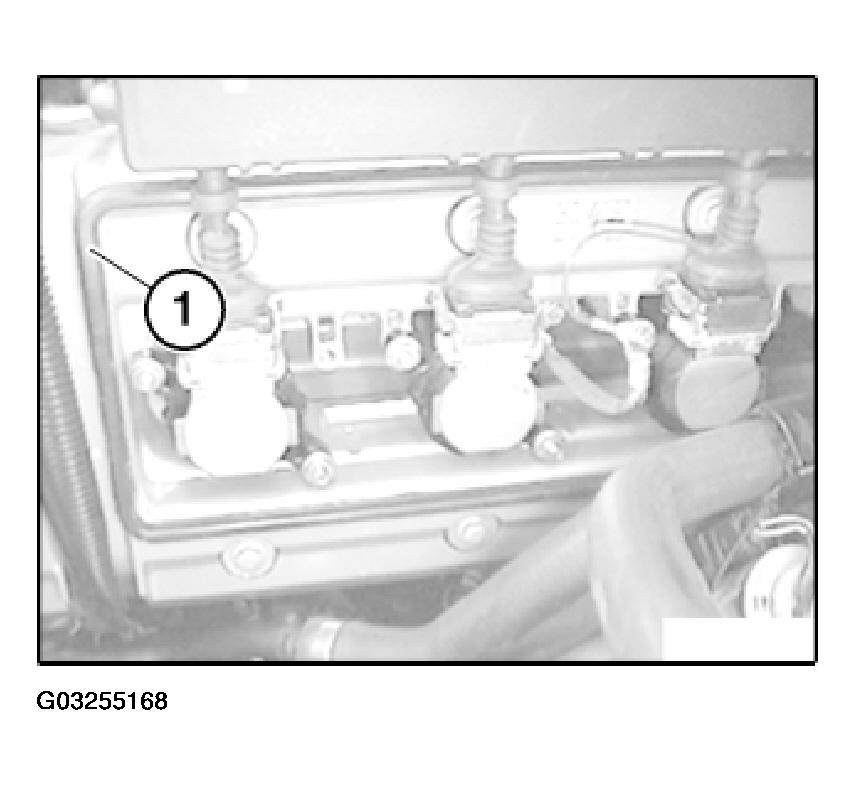

Check profile seal (1) for damage and correct seating, replace if necessary.

Fig 8: Identifying Profile Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut.

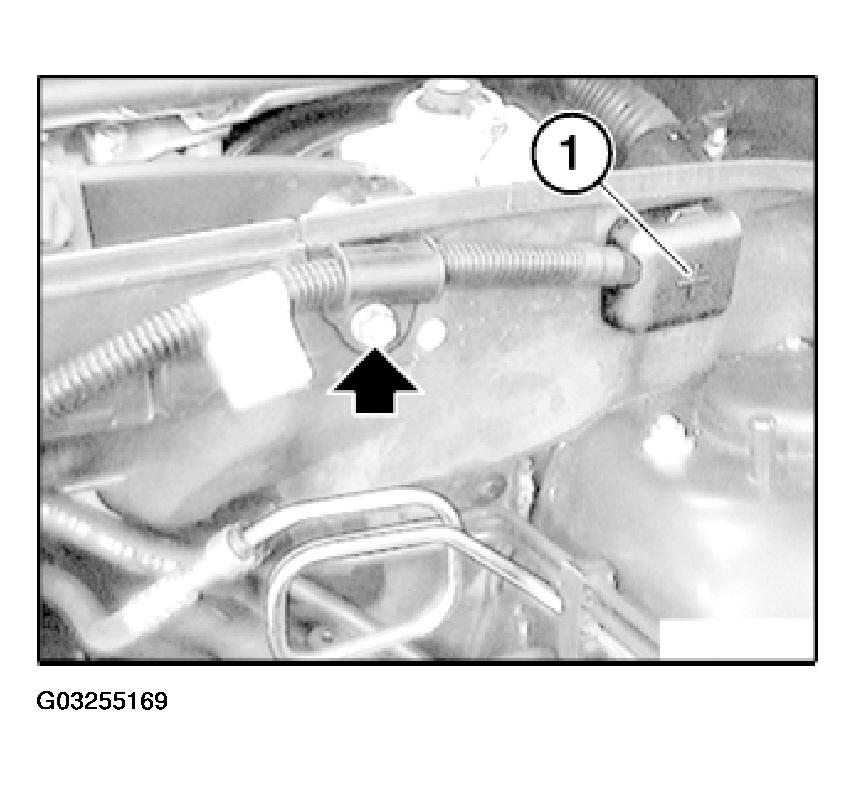

Fold down protective cap (1).

Fig 9: Installing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (2).

Tightening torque, refer to 12 51 4AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES - X5 4.6L

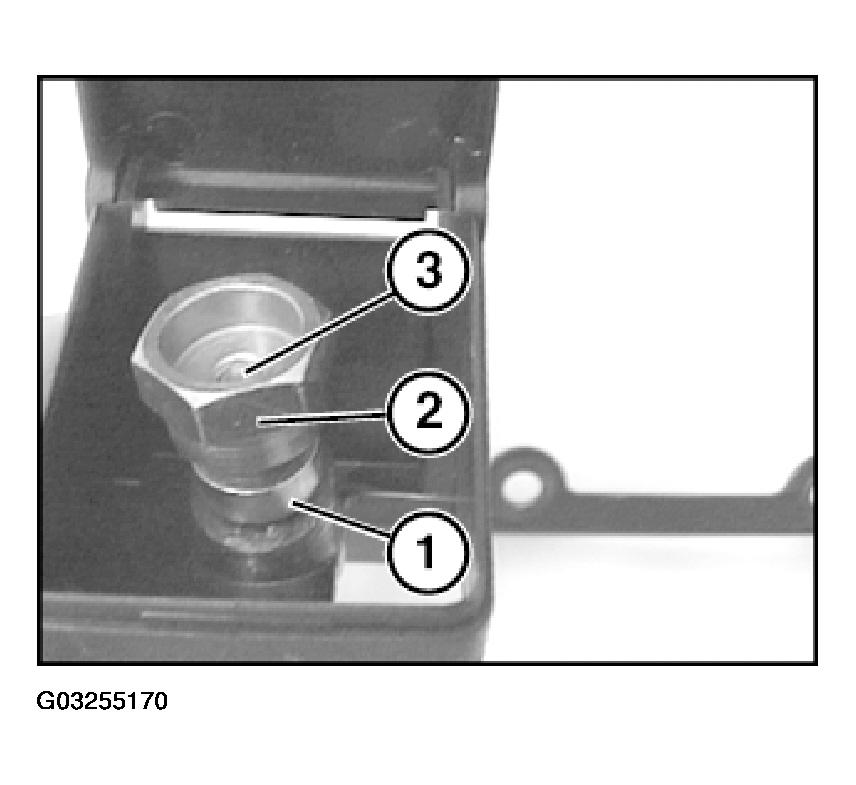

Remove battery positive lead from positive support point for jump starting.

Fig 10: Removing Jump Starting Lead

Courtesy of BMW OF NORTH AMERICA, INC.
