11 36 590 Removing and installing/replacing solenoid valve of camshaft adjustment unit, right (M62 VANOS from 9/98)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove intake filter housing with air-mass flow sensor.

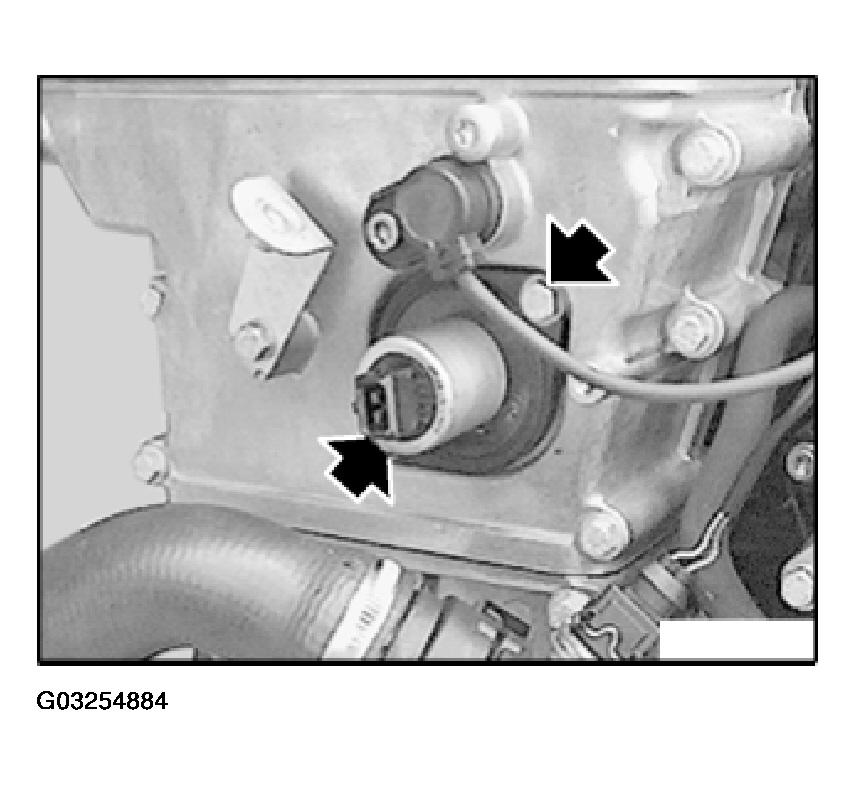

Release screws on sealing flange.

Fig 1: Removing Camshaft Adjustment Unit Sealing Flange Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The sealing flange seals the timing case cover via the solenoid valve.

If necessary, clean solenoid valve with a cloth.

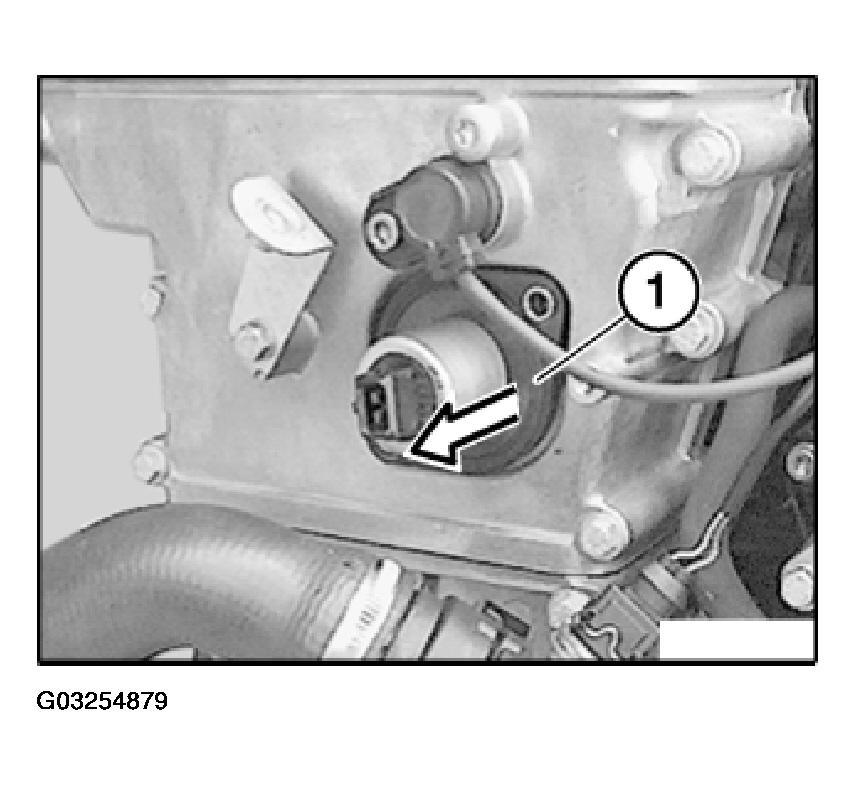

Remove sealing flange (1).

Fig 2: Removing Camshaft Adjustment Unit Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Once it has been removed, oil drips from the solenoid valve.

Have a cleaning cloth ready.

Make sure no oil drips onto the belt drive. Remove any remnants of oil immediately with cleaning cloth.

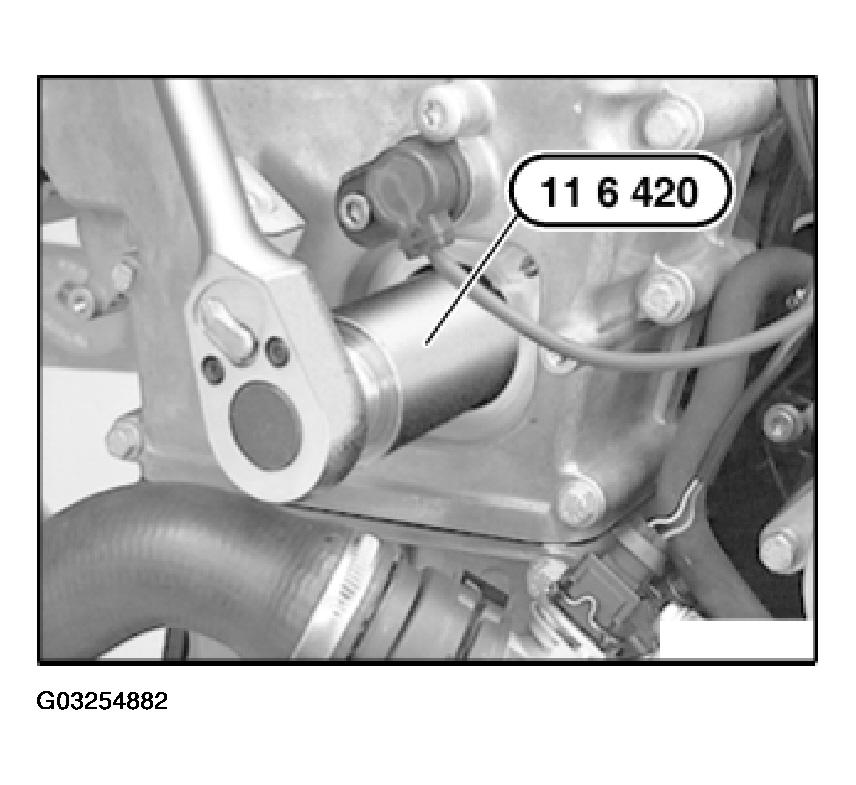

Release solenoid valve with special tool 11 6 420.

Fig 3: Removing Camshaft Adjustment Unit Solenoid Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

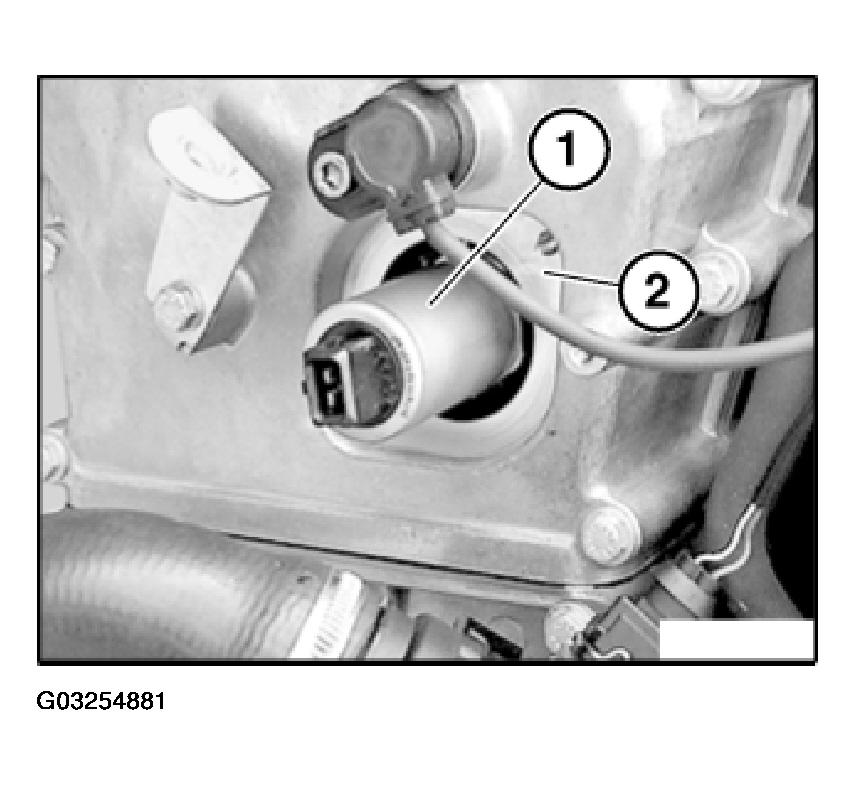

Install solenoid valve (1).

Clean solenoid valve (1) and sealing face (2).

Fig 4: Installing Camshaft Adjustment Unit Solenoid Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tighten down solenoid valve with special tool 11 6 420.

Tightening Torque,

refer to 11 36 12AZ ENGINE - TIGHTENING TORQUES - X5 4.6L .

Fig 5: Tightening Camshaft Adjustment Unit Solenoid Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check sealing flange (1), replace if necessary.

Apply a light coat of oil to inside of sealing flange (1) at sealing face to solenoid valve and carefully install.

Fig 6: Installing Camshaft Adjustment Unit Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert screws on sealing flange and tighten down.

Fig 7: Inserting Camshaft Adjustment Unit Sealing Flange Screws

Courtesy of BMW OF NORTH AMERICA, INC.
