11 25 671 Replacing piston rings on all pistons (M62): Removal

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Piston removed. See 11 25 530 REMOVING AND INSTALLING/REPLACING ALL PISTONS (M62) .

Remove piston rings with a piston-ring compressing pliers.

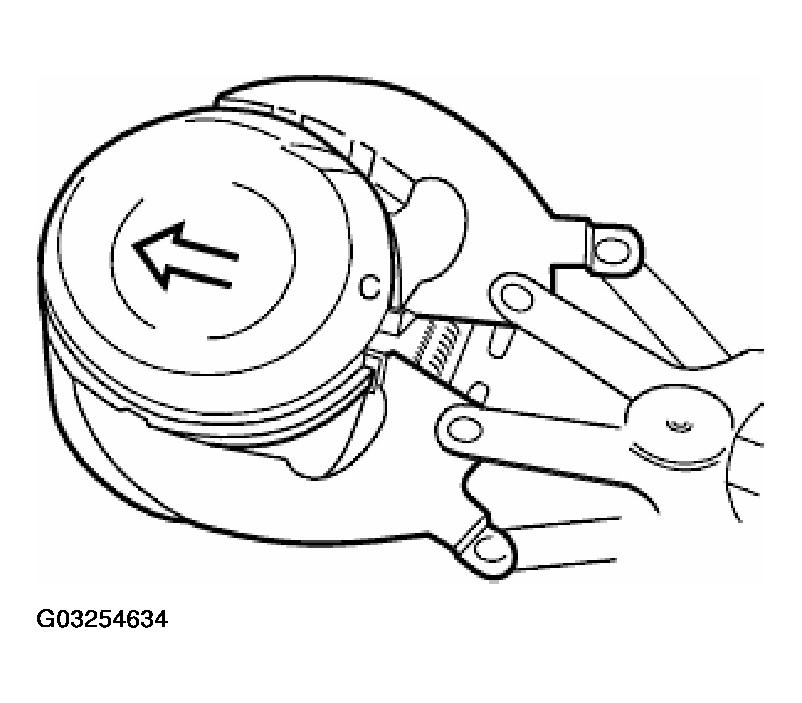

Fig 1: Removing Piston Rings

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: It might not be possible to find the identification on used piston rings.

Put aside piston rings in correct sequence and installation position.

New pistons may only be installed together with new piston rings.
