Checking Engine Oil Pressure With Pressure Gauge

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Install special tool 13 3 063 and special tool 13 3 061 (pressure gauge).

Start engine and check engine oil pressure.

Specified value, see 11 41 OIL PUMP WITH STRAINER AND DRIVE M62 B 46 .

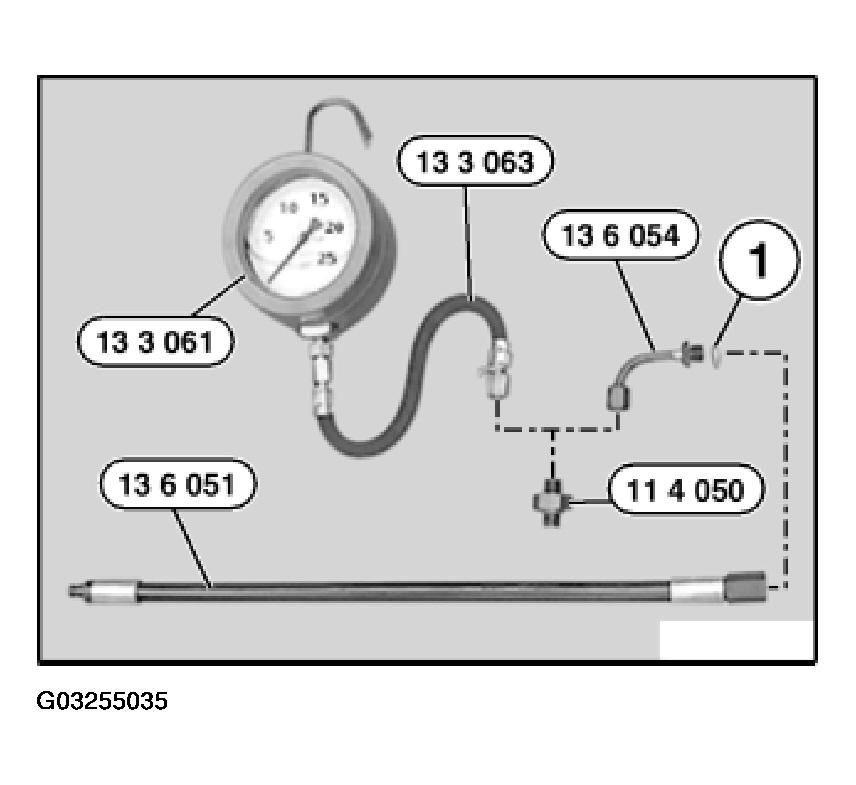

Fig 1: Checking Engine Oil Pressure With Pressure Gauge
G03255035Courtesy of BMW OF NORTH AMERICA, INC.
