11 13 020 Removing and installing/replacing lower section of oil sump (M62)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Open cover on main flow oil filter, engine oil returns to oil sump.

Remove reinforcement plate.

CAUTION: The work step "Removing and installing reinforcement plate" contains important installation instructions, refer to 31 10 010 REMOVING AND INSTALLING REINFORCEMENT PLATE .

Open oil drain plug. Drain engine oil.

Unfasten plug connection on oil level switch.

Unclip cable guide.

Release screws (1) and remove lower oil sump section.

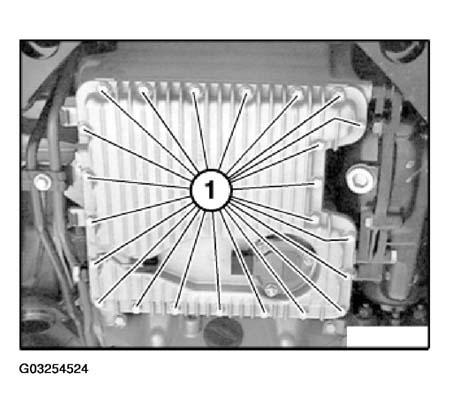

Fig 1: Removing Lower Oil Sump Section Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean sealing surfaces.

Replace seal.

Insert all screws (1) and tighten down.

Tightening torque,

refer to 11 13 2AZ in ENGINE - TIGHTENING TORQUES - X5 4.6L .
