11 62 065 Removing and installing/replacing right exhaust manifold (M62/N62)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Cylinder Bank 1 To 4

Necessary preliminary tasks:

Remove exhaust system.
Remove reinforcement plate.
Remove propeller shaft.

NOTE: Illustration with engine (M62) removed.

Release screw connection at exhaust manifold.

Feed out exhaust manifold towards bottom.

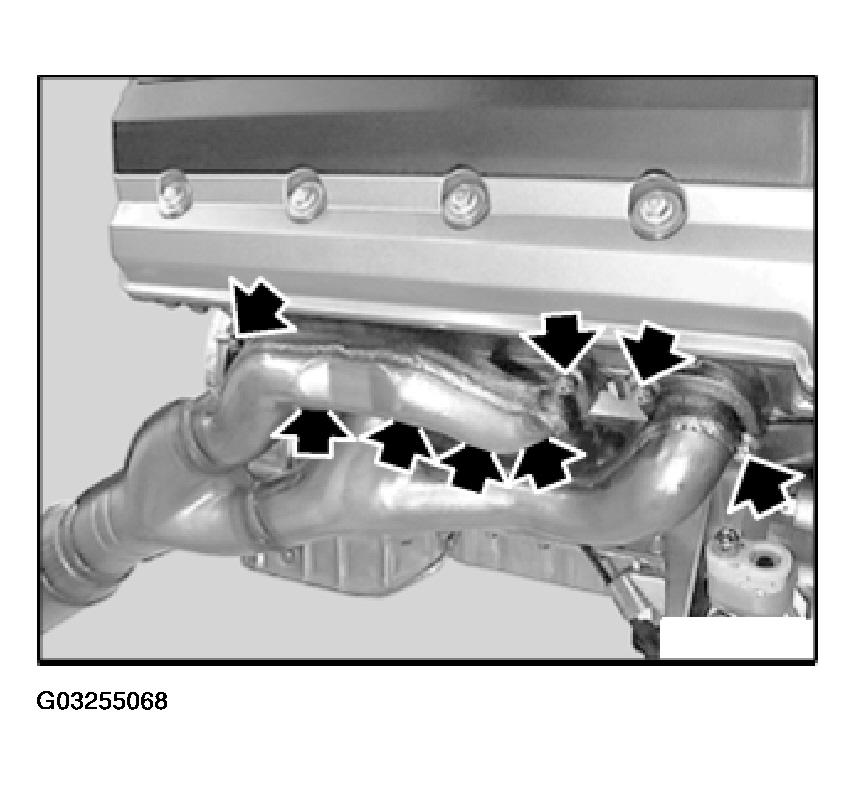

Fig 1: Removing Right Side Exhaust Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace seals.

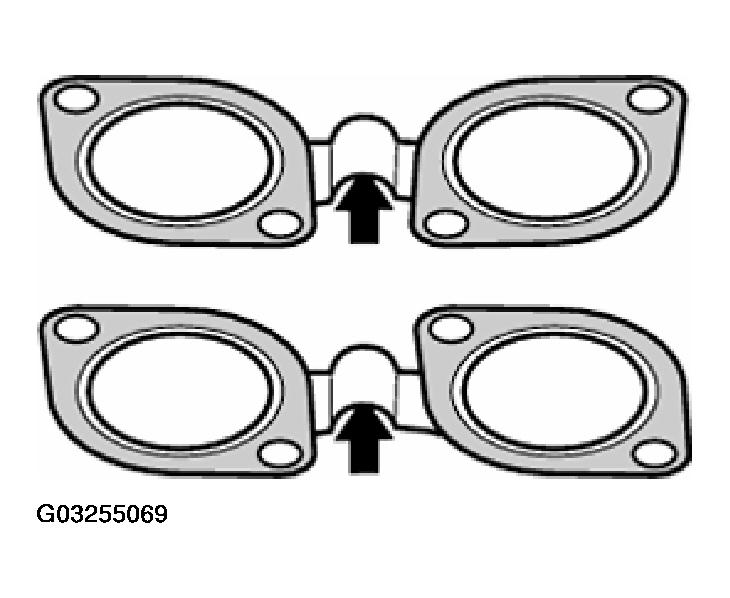

Fig 2: Identifying Exhaust Manifold Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Seal beads faces the exhaust manifold.

Coat thread with copper paste -CRC-.

Replace nuts.

Tightening torque, see 11 62 1AZ in ENGINE - TIGHTENING TORQUES - X5 4.6L .

Assemble engine.

Check exhaust system for leaks.
