11 12 719 Milling down cylinder head gasketing face (M62)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Cylinder head dismantled.

Check planeness of cylinder head gasketing face with straightedge (standard).

Deviation from planeness Max. 0.05 mm.

NOTE: Machine limit, refer to 11 12 CYLINDER HEAD WITH COVER M62 B 46 in Technical Data.

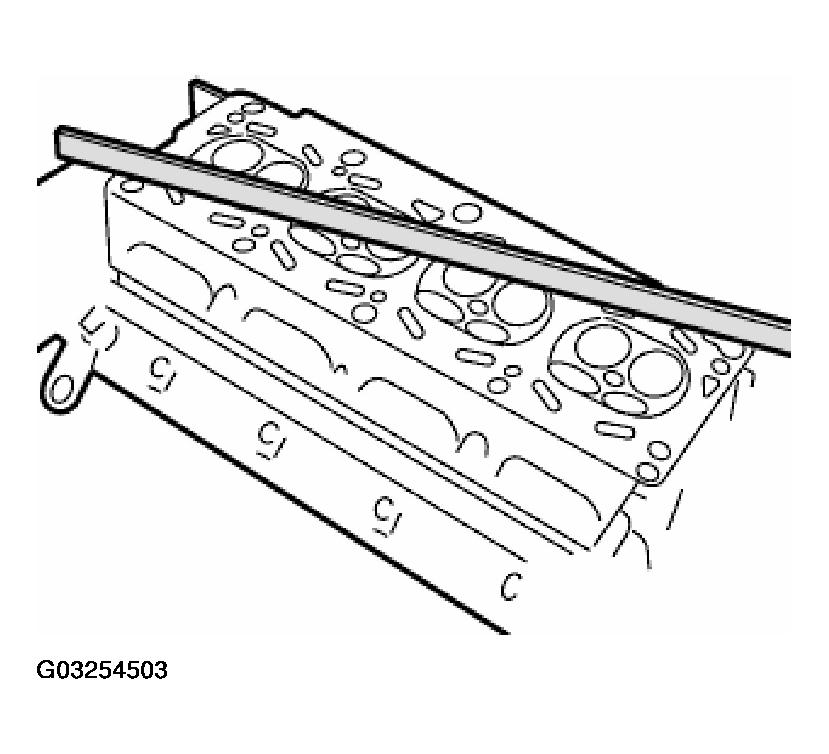

Fig 1: Checking Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: To compensate for compression, there is a repair cylinder head gasket.

NOTE: The repair cylinder head gasket is designated at the back with a bore beside the 4th or 8th cylinder.

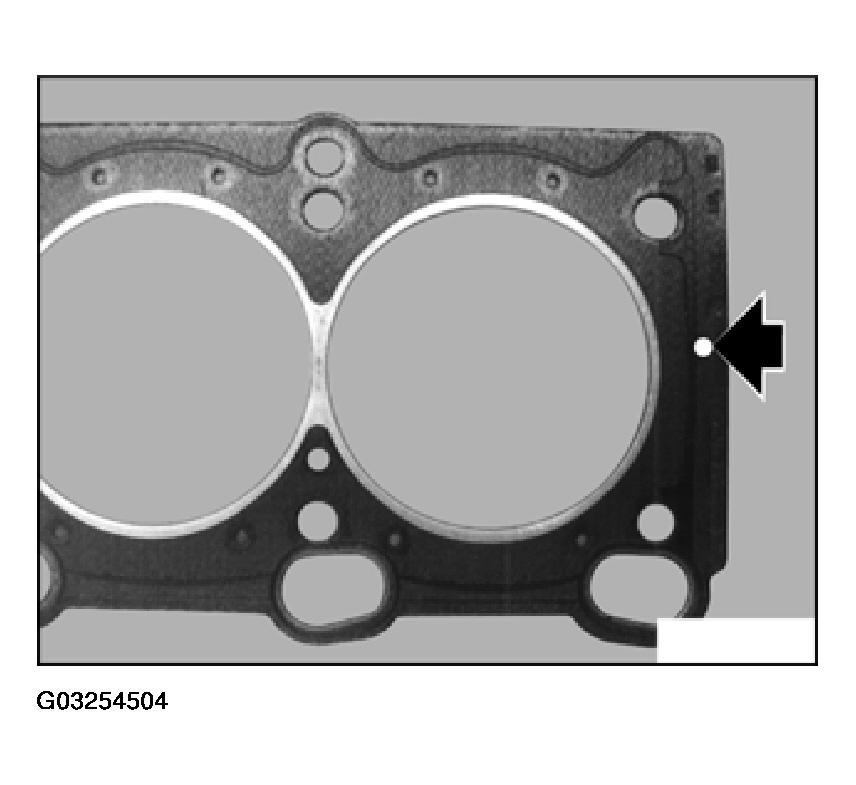

Fig 2: Identifying Repair Cylinder Head Gasket

Courtesy of BMW OF NORTH AMERICA, INC.
