11 21 571 Replacing grooved ball bearing in crankshaft (M62/S62)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Clutch Removed

Remove grooved ball bearing with special tool 11 2 340 in conjunction with special tool 11 2 016.

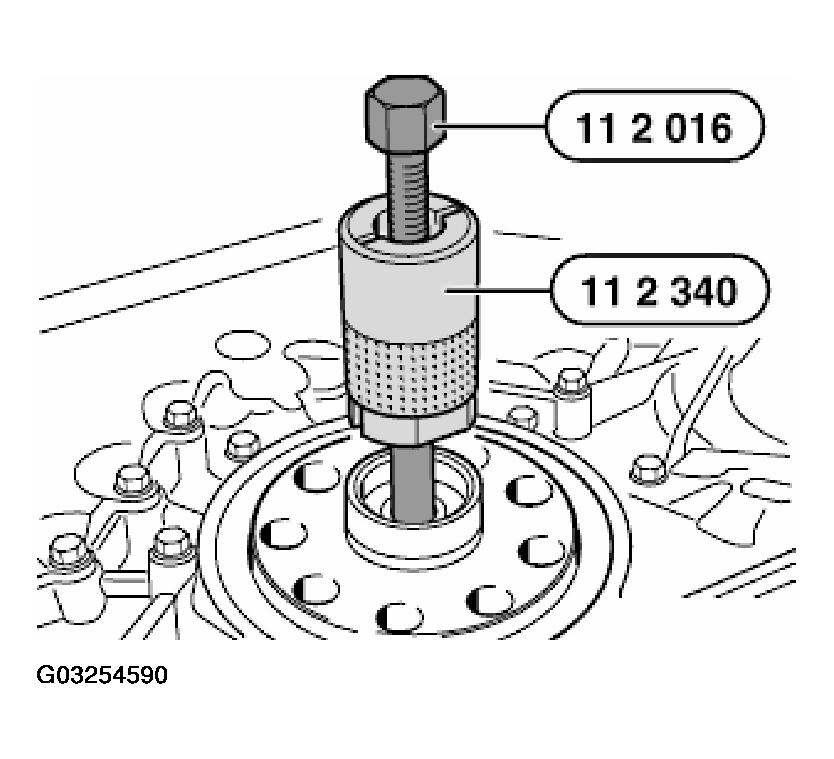

Fig 1: Removing Grooved Ball Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Install new grooved ball bearing and drive firmly home with special tool 11 2 350 in conjunction with special tool 00 5 500.

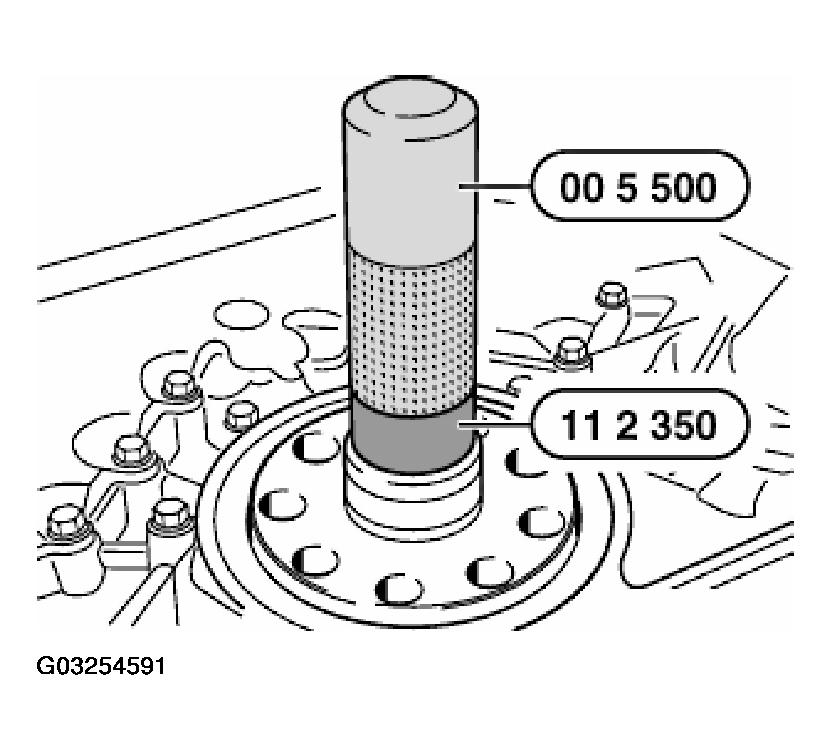

Fig 2: Installing Grooved Ball Bearing

Courtesy of BMW OF NORTH AMERICA, INC.
