00 11 500 Checking/topping up fluid level in automatic transmission (A5S 440Z)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Use only the approved automatic transmission fluid in this automatic transmission.

Failure to comply with this requirement will result in serious damage to the automatic transmission!

Topping up transmission after a repair:
Move selector lever to "P" position.

Stand vehicle on a level surface and secure and rolling off.

Open filler plug (1).

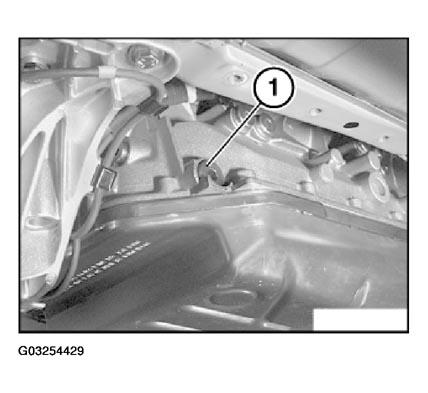

Fig 1: Locating Transmission Oil Filler Plug
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring.

Top up transmission fluid until it emerges from filling orifice. Start engine.

Replenish transmission fluid until it emerges from filling orifice. Insert filler plug (1).

Tightening torque - 35Nm.

Press brake pedal to floor and shift through all gears several times at idle speed.

Connect BMW Diagnosis and Information System (DIS) or BMW MoDiC to vehicle.

Carry out fluid level check in accordance with instructions.
Checking fluid level:
Connect BMW Diagnosis and Information System (DIS) or BMW MoDiC to vehicle.

Carry out fluid level check in accordance with instructions.
