32 00 620 Adjusting rear axle

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: A camber change always means a toe change as well. The camber must therefore be adjusted first.

NOTE: Vehicles with ACC only:

After an adjustment of the rear axle which alters the driving axis, check adjustment of ACC sensor

Adjusting camber:

Replace nut (2) prior to adjustment and tighten to 5 Nm.

Turn eccentric bolt (1) to adjust camber to setpoint value.

Tighten nut (2).

Tightening torque 33 32 2AZ .

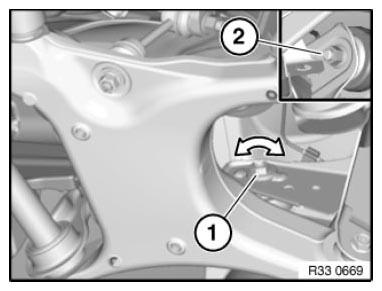

Fig 1: Turning Eccentric Bolt To Adjust Camber

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting toe:

Replace nut (2) prior to adjustment and tighten to 5 Nm.

Turn eccentric bolt (1) to adjust toe to setpoint value.

Tighten nut (2).

Tightening torque 33 32 5AZ .

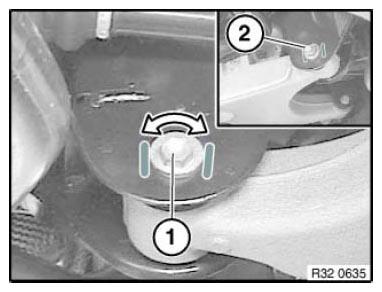

Fig 2: Turning Eccentric Bolt To Adjust Toe

Courtesy of BMW OF NORTH AMERICA, INC.
