32-4000 Device

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

0492057 324000 Device MW

NOTE: For checking the pump pressure on the hydraulic steering [Released]

Consisting of:

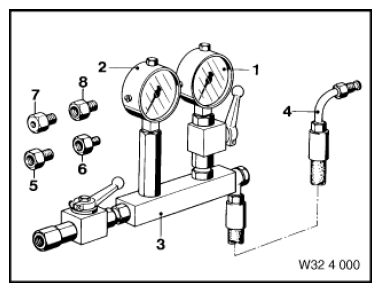

Fig 1: Identifying Device (0492057)

Courtesy of BMW OF NORTH AMERICA, INC.

11 = 0494385 Adapter
NOTE: (Adapter M14 x 1.5) [Released]
12 = 0494386 Adapter
NOTE: (Adapter M16 x 1.5) [Released]
1 = 0492058 Pressure gauge
NOTE: (Pressure gauge 16 bar) [Released]
3 = 0492060 Device
NOTE: (Testing device without pressure gauge) Discontinued, only available via complete tool [Not available separately]
5 = 0492062 Connector
NOTE: For screwing into the power steering pump / Series: E23, E46, E52, E53, E64, E65, E66, E85 [Released]
6 = 0492063 Connector
NOTE: For screwing into testing device 32 4 003 / Model series: E23, E46, E52, E53, E64, E65, E66, E85 [Released]
7 = 0492064 Connector
NOTE: (Connection piece M18 x 1.5) For screwing into pressure regulator / Model series: E32, E34 [Released]
8 = 0492065 Connector
NOTE: (Connection piece M14 x 1.5) For screwing into testing device / Model series: E32, E34 Discontinued, only available via complete tool [Not available separately]
9 = 0493264 Valve
NOTE: (Ball valve) Discontinued, only available via complete tool [Not available separately]
2 = 0492059 Pressure gauge
NOTE: (Pressure gauge 160 bar) [Released]
4 = 0492061 Line
NOTE: [Released]
