Removal of outer wheel arch section

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Cut wheel arch along line (1).

REPLACE CAVITY SEALING (2).

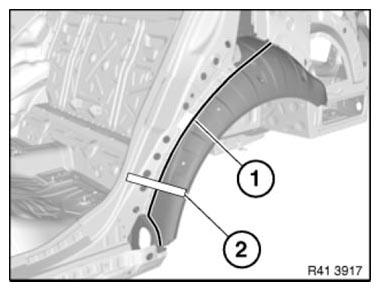

Fig 1: Identifying Wheel Arch Along Line And Cavity Sealing

Courtesy of BMW OF NORTH AMERICA, INC.

Cut wheel arch along line (1).

Remove section for outer wheel arch section.

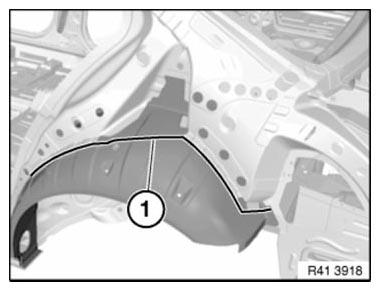

Fig 2: Identifying Wheel Arch Along Line

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Fit new part from below and weld in area (1) to overlap.

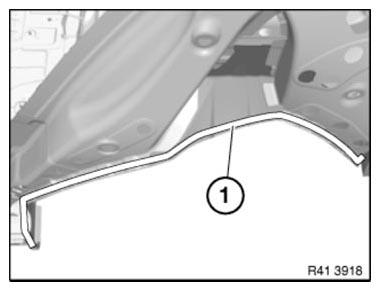

Fig 3: Identifying Rear Left Outer Wheel Arch Section Weld Area

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark new part in accordance with severance cut on vehicle + 20 mm extra material and cut.

Adjust new part in conjunction with side wall to fit.
