41 14 505 Replacing Rear Left Outer Wheel Arch Section (Rear Side Panel Removed): Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Read relevant service information under BODY .
Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.
Use only approved SPOT-WELDING APPARATUS for repairs.
The following new body parts are required (refer to BMW Electronic Parts Catalogue):

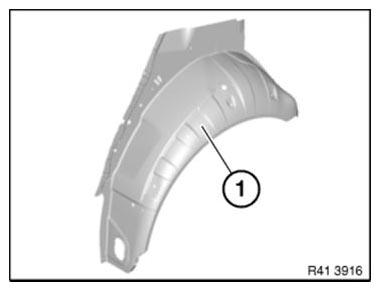

- (1) Outer wheel arch section, rear
- (4) Shaped part, entrance, outer (not shown)
