41 14 031 Replacing Front Right Wheel Arch Stripping Operations
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.
The following list basically represents the removal sequence.
- Disconnect negative battery cable
- Remove bumper trim
- Remove bumper support
- Remove headlight
- Remove radiator
- Remove A/C system condenser
- Remove and install charge air cooler
- Remove hydraulic steering cooling coil
- Remove intake silencer housing
- Remove coolant expansion tank
- Remove wheel arch cover (front section)
- Remove wheel arch cover (rear section)
- Front axle complete with engine and transmission
- Remove engine compartment lid seal mounting
- Remove engine compartment lid
- Remove engine compartment lid hinge on right
- Remove right side wall
- Remove top right wishbone
- Remove right suspension cross-brace
- Remove bulkhead sound insulation
- Remove heating A/C system blower
- Remove air conditioning refrigerant lines.
- Release right wiring harness
- Partially release/remove thermal protection

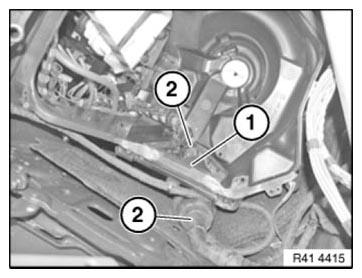

Release grommet (1) from fan housing and lay wiring harness (2) to one side.
Installation note:
The sealant between grommet (1) and fan housing must be replaced!
Make sure rubber grommet (1) is correctly seated. (watertightness).
