41 11 542 Cover For Side Member At Rear (Rear Side Panel Removed): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Open weld joints in area (1).

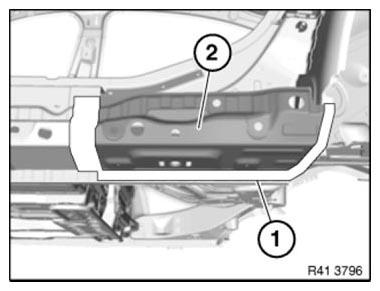

Fig 1: Identifying Weld Joints Area
G08471168Courtesy of BMW OF NORTH AMERICA, INC.

View from below:

Open weld joint (1).

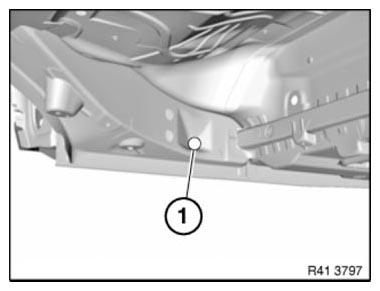

Fig 2: Identifying Weld Joint
G08471169Courtesy of BMW OF NORTH AMERICA, INC.

View from inside:

Open weld joint (1).

Remove side member cover.

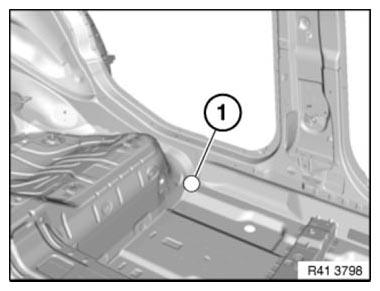

Fig 3: Identifying Weld Joint
G08471170Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Detach side wall.

Open welded connections in area (1) and remove side member cover (2).

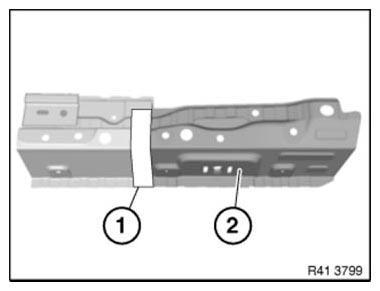

Fig 4: Identifying Welded Connections Area And Side Member Cover
G08471171Courtesy of BMW OF NORTH AMERICA, INC.
