Removal of carrier support in front of wheel arch

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Open welded connections in area (1).

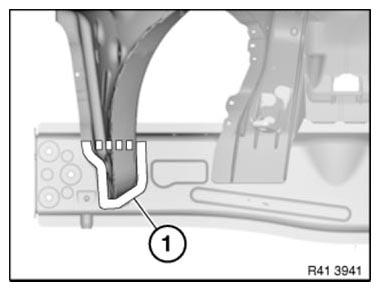

Fig 1: Identifying Welded Connections Area

G08471227

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) as pictured and cut.

IMPORTANT: Cut outer panel only.

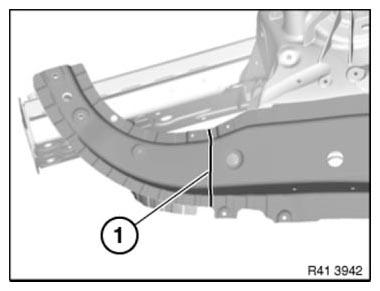

Fig 2: Identifying Severance Cut Mark

G08471228

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage to spring strut dome!

Open welded connections in area (1).

Mark severance cut (2) as pictured and cut.

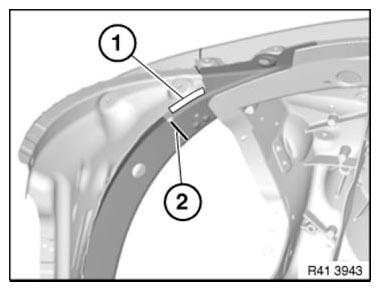

Fig 3: Identifying Welded Connections Area And Severance Cut Mark

G08471229

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) as pictured and cut.

Remove carrier support section.

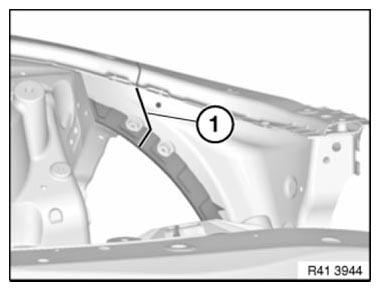

Fig 4: Identifying Severance Cut Mark

G08471230

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark severance cuts on new parts in accordance with severance cuts on vehicle and cut.

Prepare REINFORCEMENT PLATES at severance cuts.

Adjust new part to fit with set of attachments or universal mount.
