Removing side wall

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Mark severance cuts in accordance with specified dimensions and cut.

IMPORTANT: Cut outer panel only.

Compare position of severance cuts with REINFORCEMENT PLATES .

Dimension a = approx. 200 mm from center point of 25 mm dia. hole

Dimension b = approx. 115 mm from roof edge.

Open welded connections in areas (1).

Open spot-welded adhesive joints in area (2)

Open FOLDED BONDED CONNECTION  in area (3).

Loosen side wall of cavity sealing (4).

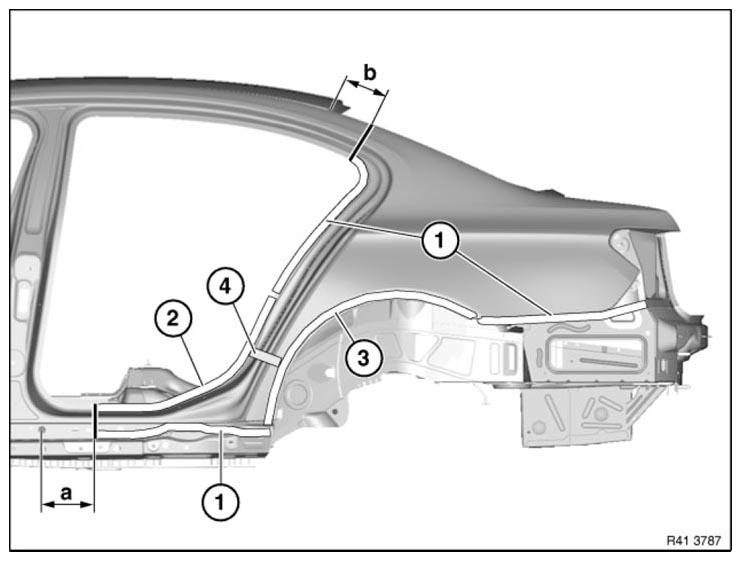

Fig 1: Identifying Rear Left Side Panel Side Wall Cavity Sealing And Welded Connections Areas
G08471498Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: In addition to the dimensions, the position of the separating cut can be determined using a TEMPLATE  (1).

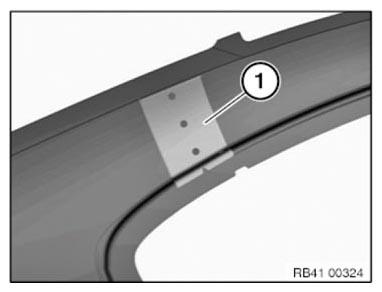

Fig 2: Identifying Rear Left Side Panel Template
G08471499Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1) and (2).

IMPORTANT: In areas (2), the welding spots must be released from the side wall.

Take off side panel.

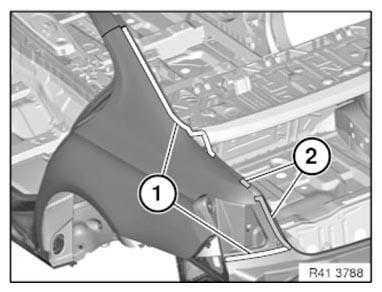

Fig 3: Identifying Welded Connections Areas
G08471500Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Release bonded joint (2).

Remove lock striker reinforcement.

Fig 4: Identifying Welded Connections Area And Bonded Joint
G08471501Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark severance cuts on the new part according to vehicle and cut.

Prepare REINFORCEMENT PLATES  (bonded) at all severance cuts.

Separate weld joints in area (1) from inside.

Remove sill section (2).

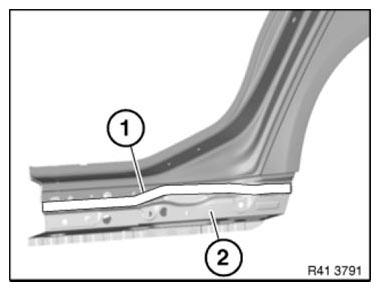

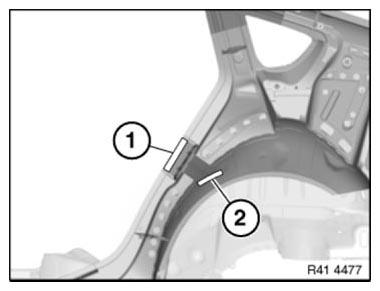

Fig 5: Identifying Weld Joints Area And Sill Section
G08471502Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new part to fit and secure.

In areas (1) and (2) set 4.2 mm dia. bore holes for blind rivets:

Area (1): 5 bore holes

Area (2): 4 holes

F02 only:

In area (1) 6 holes

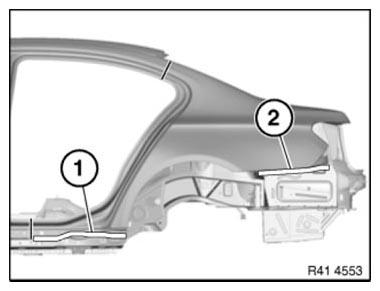

Fig 6: Identifying Rear Left Side Panel Bore Holes Areas
G08471503Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) and (2) set 4.2 mm dia. bore holes for blind rivets:

Area (1): 3 holes

Area (2): 1 bore holes

Remove new part again and deburr bore holes.

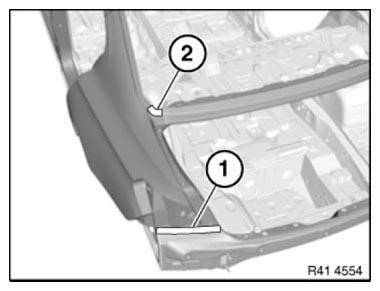

Fig 7: Identifying Rear Left Side Panel Bore Holes Areas
G08471504Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Do not grind/sand new part in area of bonding surfaces.
