Installing side wall

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Clean all bonding surfaces on vehicle, on the new part and on the reinforcement plates with cleaning agent R1.

Apply adhesive to reinforcement plates. Install reinforcement plates.

Apply adhesive in areas (1).

Apply sealing compound to CAVITY SEALING at area 2.

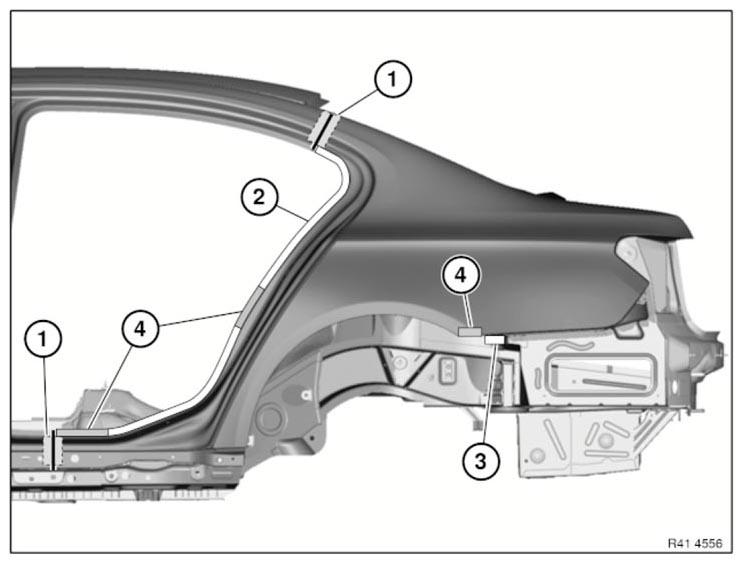

Fig 1: Identifying Adhesive Areas And Sealing Compound Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

Apply adhesive in area (1) of lock striker reinforcement.

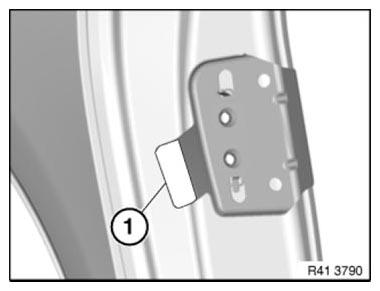

Fig 2: Identifying Lock Striker Reinforcement Adhesive Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

Apply adhesive (1) to inside of side wall at distance a.

Dimension a = approx. 5 mm.

Fig 3: Identifying Side Wall Adhesive Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

Install side panel with a second person helping.

NOTE: When installing side panel, make sure there is sufficient adhesive on bonding surfaces.

After adjusting side panel to fit, tighten nuts of reinforcement plates (1).

Secure side wall in area of reinforcement plates with gripping pliers.

Rivet side panel with blind rivets N3.

Use 11 punch rivets N4 in area (2).

Use 2 punch rivets N4 in area (3).

In areas (4), fix the side wall using gripping pliers until the adhesive hardens.

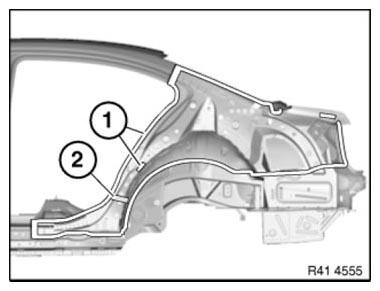

Fig 4: Identifying Reinforcement Plates Side Panel Bonding Surfaces And Punch Rivets Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Use N4 punch rivets in areas (1) to (3).

Use punch rivets N5 in areas (4) and (5).

IMPORTANT: In area (4), the punch rivets must be set from the side wall.

Area	Number
1	5
2	2
3	3
4	3
5	1

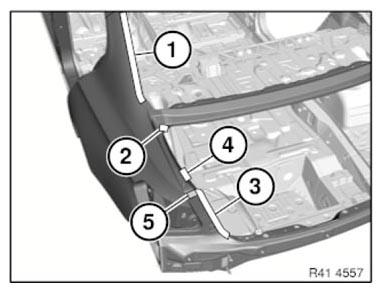

Fig 5: Identifying Punch Rivets Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Also apply adhesive (2) to outer wheel arch section (3).

Rear side wall.

Fig 6: Identifying Rear Side Wall, Adhesive Applying Area And Outer Wheel Arch Section
Courtesy of BMW OF NORTH AMERICA, INC.

Flange edge of wheel arch (3) of side wall flush to outer wheel arch section.

Do not create sharp edges when flanging as otherwise the flange edge may begin to tear.

Dimension (A) = 5 mm.

Adhesive
Rear side wall

Also seal in area (3) according to standard.

IMPORTANT: Flange edge must be completely filled with adhesive!

Fig 7: Identifying Adhesive, Rear Side Wall And Seal Area

Courtesy of BMW OF NORTH AMERICA, INC.

After hardening of the adhesive, install two EMC SCREWS in the areas (1).

Additionally, install EMC screw in sill area.

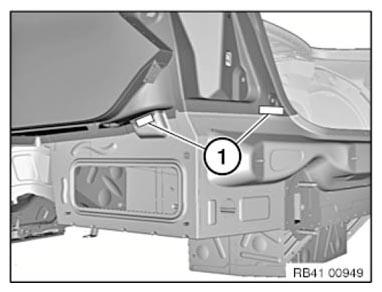

Fig 8: Identifying EMC Screws Areas

Courtesy of BMW OF NORTH AMERICA, INC.
