Installing door post, front

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

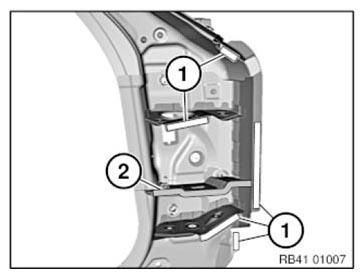

Clean bonding surfaces (1) with cleaning agent R1.

Apply sealant to cavity sealing (2). See CAVITY ACOUSTIC BAFFLE (EXPANDED) or CAVITY ACOUSTIC BAFFLE (NOT EXPANDED) .

Apply adhesive to bonding surfaces.

Fig 1: Identifying Bonding Surfaces And Cavity Sealing

G08471374

Courtesy of BMW OF NORTH AMERICA, INC.

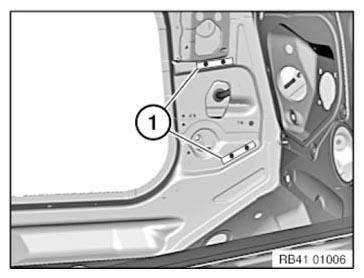

Install new parts and reinforcement plates with alignment bracket or universal mount.

At the same time, make sure water drain hose of slide/tilt sunroof is correctly fitted.

In areas (1), rivet new part with blind rivets N7.

Fig 2: Identifying Bore Holes

G08471375

Courtesy of BMW OF NORTH AMERICA, INC.

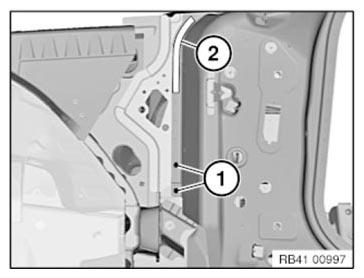

In areas (1), rivet new part with blind rivets N7.

Weld new part in area (2).

Fig 3: Identifying Blind Rivets Area And Weld Area

G08471376

Courtesy of BMW OF NORTH AMERICA, INC.

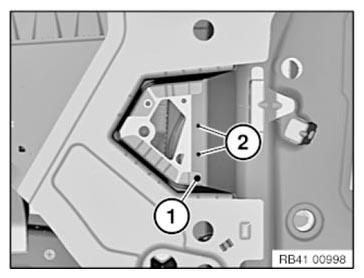

Install side frame connection new part and rivet with blind rivets.

Area	Blind rivet N7	Blind rivet N3
1	1
2		2

Weld new parts in the remaining joint areas.

Fig 4: Identifying Blind Rivet Areas

G08471377

Courtesy of BMW OF NORTH AMERICA, INC.

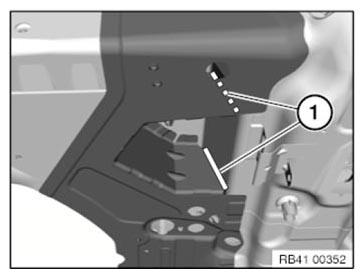

MAG-weld new part in areas (1).

To do so, apply 10 mm long fillet welds at spacing of 15 mm.

Weld new part in the remaining joint areas.

Fig 5: Identifying MAG-Weld Areas

G08471378

Courtesy of BMW OF NORTH AMERICA, INC.
